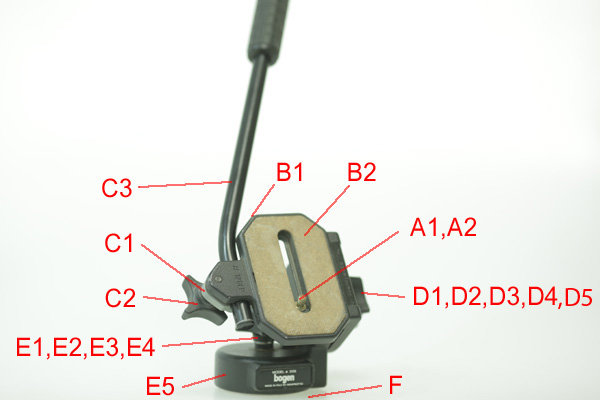

128LP Version 4 -Video Pan Head

A1 1/4-20 Camera Screw
A2 3/8-16 Camera Screw

B1 Top Plate & Camera Screw
B2 Cork Pad (Not Avalable)
B2 Rubber Pad

C1 Pan Handle Clamp Only (not available)
C2 Pan Handle Lock Knob Only
C3 USED Pan Handle Only
C3 REPLACEMENT Pan Handle Only

D1 Tilt Locking Knob
D2 USED Tilt Bearing Stack
D3 USED Tilt Threaded Pin
D4 USED Fluid Disk for Elevation/tilt
(this part comes checked and pre greased)
D5 Recessed hex stainless screw

E1 Panning Locking Knob
E2 USED Panning Bearing Stack
E3 USED Panning Threaded Pin
E4 USED Fluid Disk for Panning
(this part comes checked and pre greased)
E5 Panning Main Housing
E5 USED Panning Main Housing

F Base (not a stock item)

G Tilt Fluid Grease (not shown) for parts E4 and D4

Editors Notes: Parts B1, B2, C1, D1, E1 have variations between models and may not work with previous Versions.Previous parts list Versions are not available unless listed here. Click on the numbered link to see the actual part picture. .
