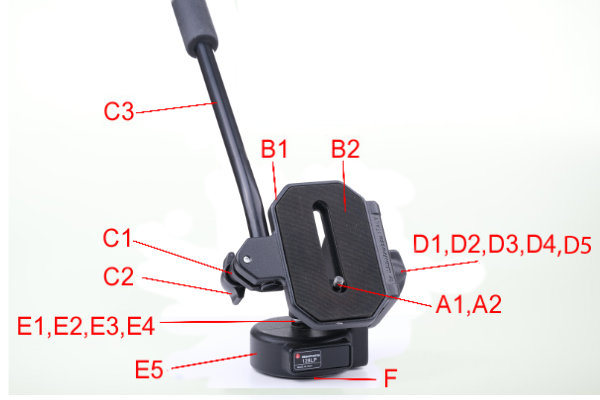

128LP Version 8 -Video Pan Head

A1 1/4-20 Camera Screw
A2 3/8-16 Camera Screw

B1 Used Top Plate & Camera Screw
B2 Rubber Pad

C1 USED Pan Handle Clamp Only
C2 Pan Handle Lock Knob Only
C2 USED Pan Handle Lock Knob Only
C3 USED Pan Handle Only
C3 REPLACEMENT Pan Handle Only

D1 Tilt Locking Knob
D1 USED Tilt Locking Knob
D2 Tilt Bearing Stack
D2 USED Tilt Bearing Stack
D3 Tilt Threaded Pin
D3 USED Tilt Threaded Pin
D4 USED Fluid Disk for Elevation/tilt
(this part comes checked and pre greased)
D5 Recessed hex stainless screw
This keeps the threaded pin from moving

E1 Panning Locking Knob
E1 USED Panning Locking Knob
E2 Panning Bearing Stack
E2 USED Panning Bearing Stack
E3 Panning Threaded Pin
E3 USED Panning Threaded Pin
E4 USED Fluid Disk for Panning
(this part comes checked and pre greased)
E5 Panning Main Housing
E5 USED Panning Main Housing

F Base

G Tilt Fluid Grease (not shown) for parts E4 and D4



Editor Notes: Parts B1, B2, C1, C2, D1, E1 are different on earlier Versions. Part B2 will replace the cork Version. Previous parts list Versions are not available unless listed here.

See 128LP ver 8
Manufacturers Parts List
