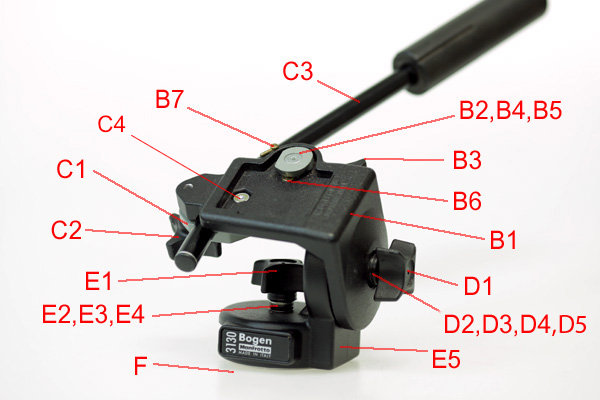

128RC2 Version 6 -Video Pan Head
Made about 2005-05-10
Also called Bogen 3130
A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
A7 Rubber Pad
A8 Location Pin - Single
A8 Location Pin - 5 pack
A9 1/4 to 3/8 Thread Adapter
B1 QR Receiver/Tilt Assembly
B2 QR Locking Cam
B3 QR Lock Release Lever
B3 USED QR Lock Release Lever
B4 QR Lock Return Spring
B5 QR Lock Pivot Screw
B6 QR Lock Safety Catch
C1 Pan Handle Clamp Only
C2 Pan Handle Lock Knob Only
C2 USED Pan Handle Lock Knob Only
C3 USED Pan Handle Only
C3 REPLACEMENT Pan Handle Only
D1 Tilt Locking Knob
D2 USED Tilt Bearing Stack
D3 USED Tilt Threaded Pin
D4 USED Fluid Disk for Elevation/tilt
(this part comes checked and pre greased)
D5 Recessed hex stainless screw
E1 Panning Locking Knob
E2 USED Panning Bearing Stack
E3 USED Panning Threaded Pin
E4 USED Fluid Disk for Panning
(this part comes checked and pre greased)
E5 Panning Main Housing
E5 USED Panning Main Housing
F Base (not a stock item)
G Tilt Fluid Grease
Editors Notes: Parts B1, C1, D1, E1 have variations between models and may not work with previous Versions.Previous parts list Versions are not available unless listed here. Click on the numbered link to see the actual part picture.
