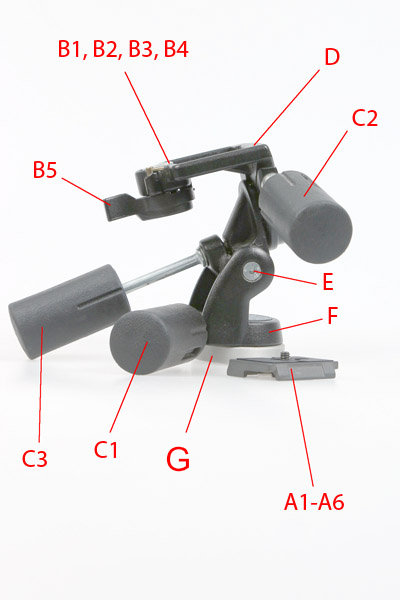

Manfrotto 141RC version 4
Made after 1997-01-21
Also called Manfrotto 141RC. Uses 200PL Series Quick release.
USED parts are marked as USED, parts not marked as USED are new.
A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
B1 Locking Cam
B2 Return Spring
B3 Pivot Screw
B4 USED QR Locking Pin
B5 QR Thumb Lever
C1 USED Original Short Handle
C1 Replacement Short Handle
C2 USED Original Middle Handle
C2 Replacement Middle Handle
C3 USED Original Long Handle
C3 Replacement Handle
D QR Receiver Plate
E Pan Casting
F Main Casting
G Tripod Base
Editors note: Click on the numbered link to see the actual part picture.
