MK290LTA3-3W Tripod and Head Kit
Made after 2015-09-16
For Serial Number A4776720

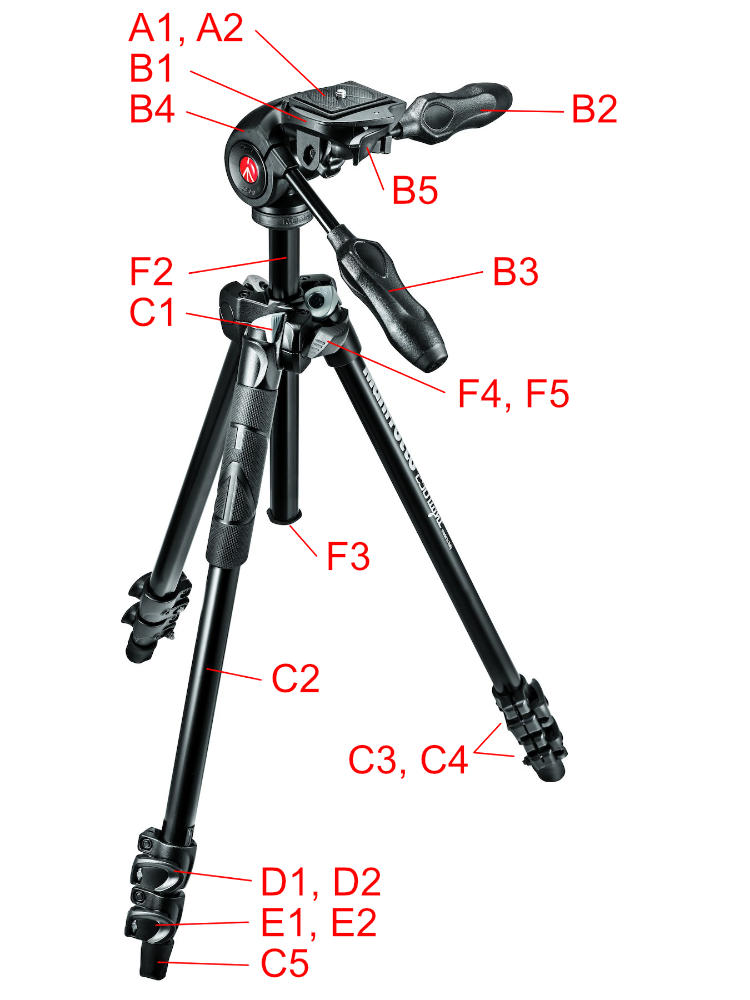

Head Parts
A1 Light Weight Quick Release with 1/4-20 ScrewA2 Light Weight Arca Compatible
Quick Release with 1/4-20 Screw
B1 QR Plate Receiver Assembly
B2 Upper handle
B3 Lower Handle
B4 Head Main Casting
B5 QR Safety Catch
Replaces R1033,21
B6 Main Body
B7 Catch (not a stock item)
B8 Bezel (not shown on picture)
B9 Bubble Assy
Tripod Parts
C1 Leg Extender Release ButtonC2 Leg Pivot & Top Leg Tube
C3 Middle Leg Tube
C4 Bottom Leg Tube
C5 Rubber Feet (individual)
C5 Rubber Feet (set of 3)
D1 Top Leg Clamp
D2 Top Snap Lever
D3 Top Clamp Screw
E1 Bottom Leg Clamp
E2 Bottom Snap Lever
E3 Bottom Clamp Screw
F1 Main Casting
F2 Center Column
F3 Center Column Plug
F4 Sliding Block
F5 Center Column Lock Knob
F6 Short Center Column BFSCC
G Cable Clip & Wrench
H T25 TORX Wrench
For Leg Clamps
Editor note: Click on the numbered link to see the actual part picture.
