MKBFRC4-BH Black Carbon Fiber Tripod
Made after 2016-04-21

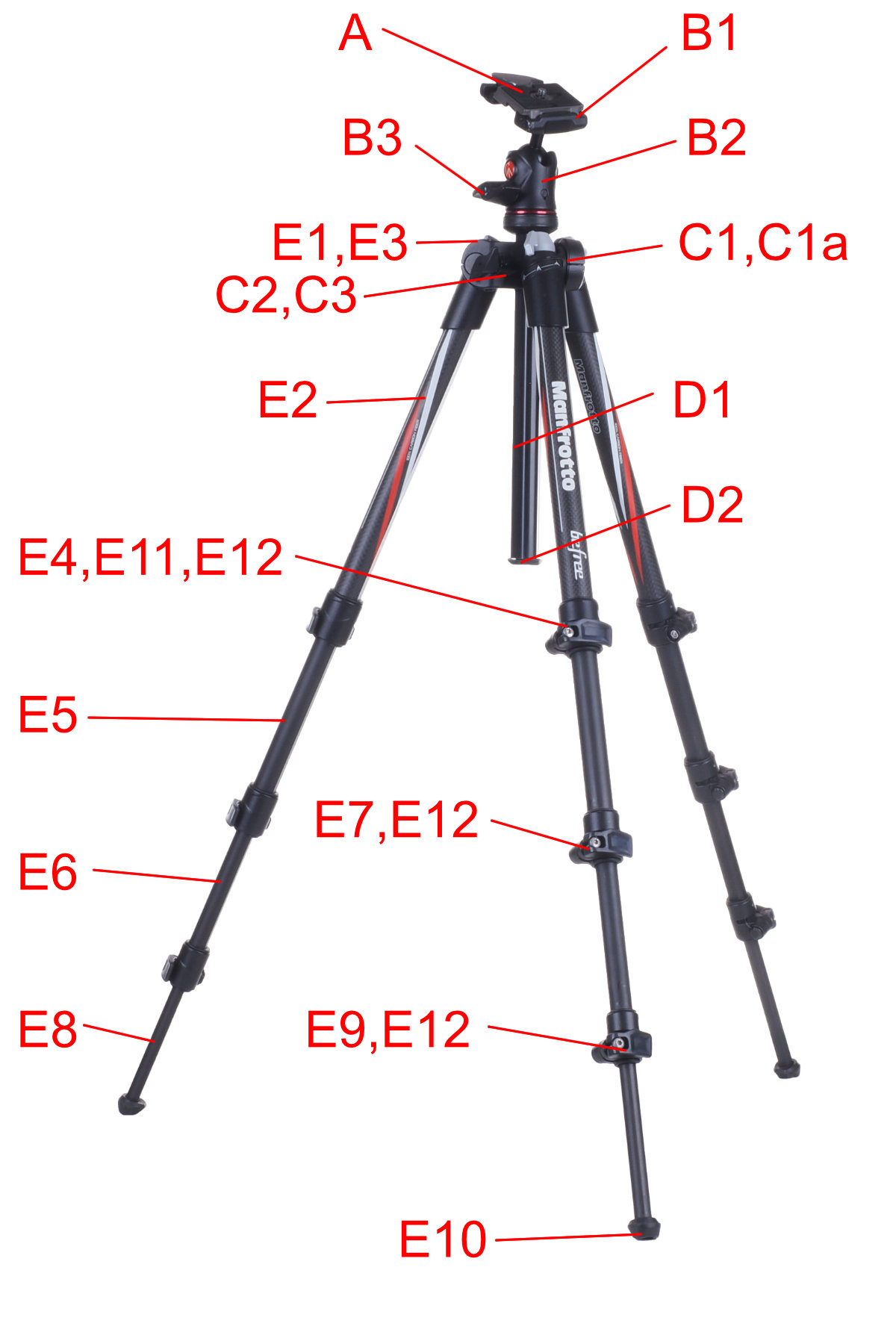

The parts listed without color note are the common ones. Those with color notation are for each of the color variations.
Head Parts
A Light Weight Quick Release 1/4-20 ScrewB1 QR Receiver Plate
B2 Ball Head Body Assy
B3 Ball Lock Knob - single
Tripod Parts
C1 Main Casting Spider AssyC2 Center Column Locking Shoe
C3 Center Column Lock Knob
D1 Center Column (not shown)
D2 CTR Column Cap & Bumper(not shown)
E1 Leg Position Lock (single)
E1 Leg Position Lock (set of 3)
E2 Upper Leg Tube & Lock Assy
E3 Upper Leg Tube Bushing
E4 Upper Leg Clamp Lever
E5 Middle Leg Tube & Lock Assy
E6 Bottom Leg Tube & Lock Assy
E7 Middle Leg Clamp Lever
E8 Bottom Leg Tube
E9 Bottom Leg Clamp Lever
E10 Rubber Feet with Screw
E10 Spike Feet - 3 pack
E10 Suction Cup Feet - 3 pack
E11 Leg Clamp Sleeves (set of 3)
E12 Screw Cap (set of 10)
F T25 Torx Wrench
Editor note: Click on the numbered link to see the actual part picture.
