MKCOMPACTADVBH version 2 Advanced with Ball Head in Black Tripod Kit
Made after 2015-03-24

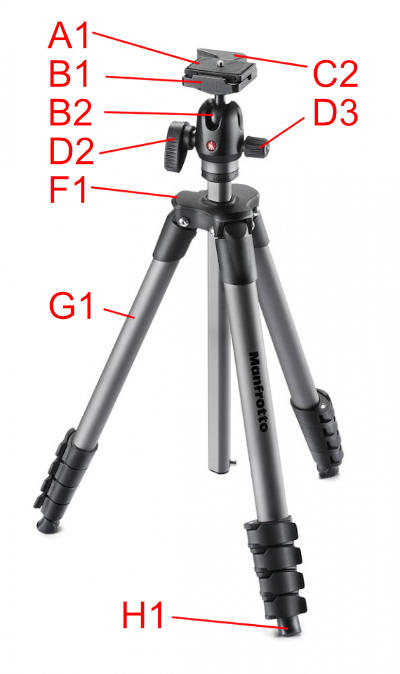

Head Parts
A1 Quick Release 1/4-20 ScrewA2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
B1 Top Plate Assembly
(includes all C parts)
B2 Ball
B3 QR Receiver Attachment Screw
C1 QR Safety Catch
C2 QR Cam Thumb Lever
C3 QR Cam Return Spring
C4 QR Cam Pivot Screw
D1 Main Casting
D2 Control Knob
D3 Drag Control Knob
E1 Base Assembly
E2 Fixed Bearing
E3 Bearing With Spring
Tripod Parts
F1 Center Column Lock KnobG1 Leg Assembly (not available as a part)
H1 Rubber Feet - individual
H1 Rubber Feet - 5 pack
Editor note: Click on the numbered link to see the actual part picture.
