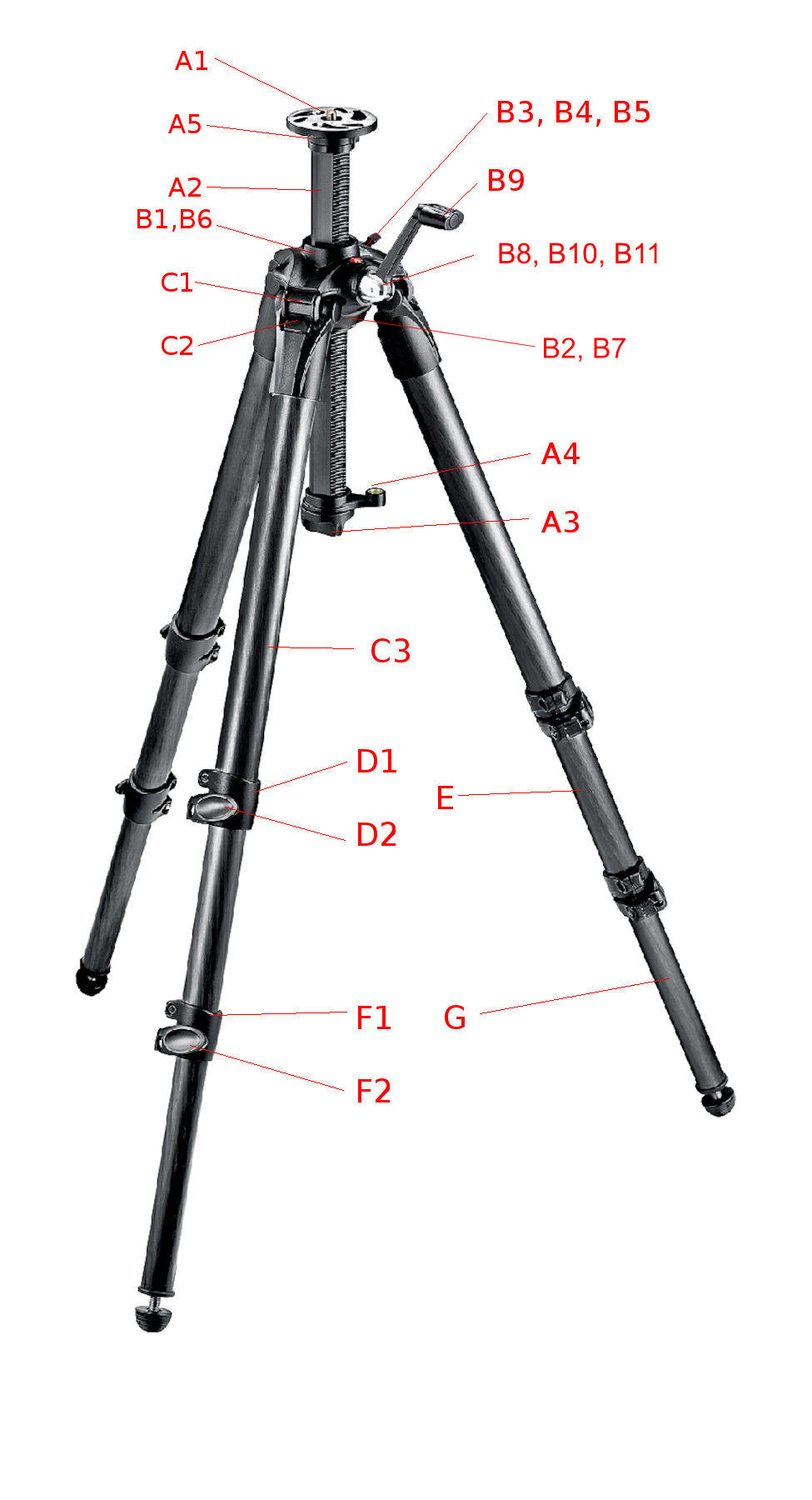

MT057C3-G - Geared Elevation, Carbon Fiber Video Tripod

A1 Grub Screw
A2 Geared Center Column
A3 Center Column Plug
A4 Side Bubble Level-Single
A4 Side Bubble Level-10 pack
A5 Center Column Top Plate

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Center Column Lock Screw
B4 Center Column Guide Shim
B5 Center Column & Gear Guide
B6 Main Casting Top Plate Screws - 3 pack

B7 Main Casting Bottom Plate Screw
B8 Center Column Crank Assy
B9 Center Column Crank Handle Only
B10 Center Column Crank Shim
B11 Center Column Gear

C1 Leg Position button
C2 Leg Butterfly Bushing
C3 Upper Leg Tube & Brace

D1 Upper Leg Clamp Assy
D2 Upper Leg Clamp Lever
D3 Clamp Screw
D4 T25 Wrench

E Middle Leg Tube

F1 Lower Leg Clamp Assy
F2 Lower Leg Clamp Lever
F3 Clamp Screw
F4 T25 Wrench

G Bottom Leg Tube with Foot

H1 Leg Sleeves
(to be mounted on tubes)
H2 Leg Bushings
(to be mounted on locking collars)

I T25 Torx Wrench

J Cable Clip & Wrench


Editor note: Click on the link to see the actual part picture.

See MT057C3 Geared
Manufacturers Parts List
