MT190CXPRO4CN - Carbon Fiber Tripod

(Chinese Version)
Made after 2014-07-15


MT190CXPRO4CN CARBON FIBER TRIPOD

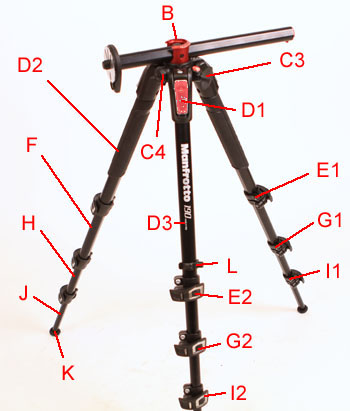

MT190CXPRO4CN CARBON TRIPOD OVERALL VIEW
A Center Column Assy
A1 Grub Screw
A2 Top Bezel Ring & Bubble
A3 Side Bubble Level-Single
A3 Side Bubble Level-10 pack

B Pro Bushing Assembly

C1 Main Casting Top Plate
C2 Main Casting Bottom Plate
C3 Center Column Lock Knob
C4 Rubber Cap
C5 Accessory Nut
C6 Main Casting Screws - 3 pack
C7 Torx Wrench
C8 Strap Loop
C9 Center Column Lock Shoe

D1 Leg Pivot Release (not red)
D2 Tube Without Endgravings (not a stock item)
D3 Tube with Endgravings (not a stock item)

E1 Upper Leg Clamp Assy
E2 Upper Snap Lever
E3 Clamp Screw
E4 T25 Wrench

F Upper Middle Leg Tube (not a stock item)

G1 Upper Leg Clamp Assy
G2 Middle Snap Lever
G3 Clamp Screw
G4 T25 Wrench

H Lower Middle Leg Tube (not a stock item)

I1 Lower Leg Clamp Assy
I2 Lower Snap Lock Lever
I3 Clamp Screw

J Lower Leg Tube (not a stock item)

K Rubber Feet -set of 3

L1 Leg Sleeves
L2 Leg Collars
L3 Cable Clip



Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture.
