MVK500AQ & MVH500AH Head - Video Tripod Kit

Made after 2014-07-08

This is a factory kit made of two different products. A limited list of arts are shown here. Click the button for the most complete parts diagram available.
USED parts are marked as USED, parts not marked as USED are new.

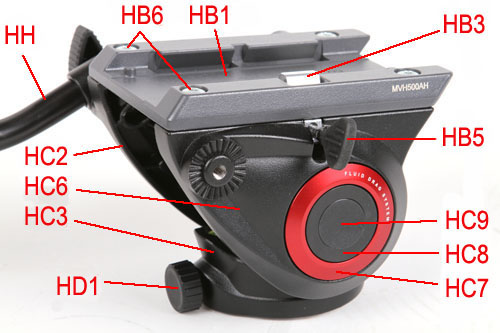

Manfrotto MVH500AH Head
The Flat bottom head is shown as an example - the actual head has a round ball on the bottom.


HB1 MVH500AH QR Receiver Top Plate
HB3 QR Plate Lock Shoe (not a stock item)
HB4 Main Baffle (not a stock item)
HB5 QR Plate Lock Shoe
HB6 Screw

HC1 Main Pivot Screw
HC2 Left Side with Spring (not a stock item)
HC3 Main Housing (not a stock item)
HC4 Side Bubble Level-Single
HC4 Side Bubble Level-10 pack
HC5 Pan Fluid Disk (uses 2 in head)
HC6 Right Side (not a stock item)
HC7 Bezel Ring (not a stock item)
HC8 Face Plate(not a stock item)
HC9 Label (not a stock item)

HD1 Rotating Lock Knob
HD2 Rotation Lock Shoe
HH Pan Handle Assembly



Manfrotto Ball Handle

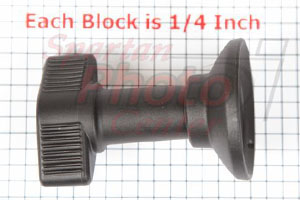

AAA Ball tightening Knob




A1 Ball Adapter (75mm to 60mm)
A2 Mounting Screws for Ball Adapter

B1 Main Casting

B2 Leg Release
B3 Leg Retainer

C1 Leg Assembly (no endgravings)
C2 Leg Assembly (with endgravings)
C3 Upper Leg Clamp
C4 Middle Leg Clamp
C5 Bottom Leg Tube and Lock Assy
(not a stock item)
C6 Leg Clamp Lever

The retractable rubber foot is not sold separately, it is Only available as the complete leg C1, C2

D Cable Clip (not shown)

Editor note: There are 3 versions of the tripod, with minor differences. Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the numbered link to see the actual part picture.
