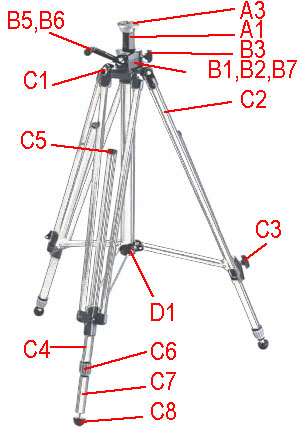

028 Version 4 - Aluminum Tripod

Made After 2004-11-09



  A1 Grub Screw - Single
A1 Grub Screw - 5 Pack
3 grub screws required
A2 USED Round Center Column
A3 Center Column Plug
A4 Center Column Shims

B1 USED Round Main Casting Top Plate
B2 USED Center Column Lock Knob
B3 USED Main Casting Bottom Plate
B4 Bubble Level
B5 USED Elevation Crank

C1 USED Leg Pivot
C2 Upper Leg Assy
C3 Leg Extension Lock Knob
(not available separately)

D USED Spider Assembly

E1 Middle Leg Tube Cap - Single
E1 Middle Leg Tube Cap - 5 Pack
E2 USED Middle Leg Tube
E3 USED Middle Leg Locking Collar

F1 USED Center Column Tube
F2 Used Center Column Bezel

G USED Retractable Rubber Foot & Bottom Tube

Editor note: Most parts for this round center column
version are not compatible with later models that have
the 6 sided center column.

The oldest versions may not have a middle extendable
leg tube.

Carefully check the pictures after you click the link to make
sure these look identical to your.

Parts marked as USED are reconditioned and only available
as USED. Where there is a dual listing the one not showning
USED is the NEW part. Item L for example.

Item numbers listed in the index on the right column may not be
shown on the picture because the part may be obscured or is
inside another part or it is underneath another part and cannot
be shown. Click on the link to see the actual Part picture. Links
will turn red on "mouse-over' and blue after they have been visited.
