029 version 2 - 3 Way Pan Head

Made After 1998-06-04

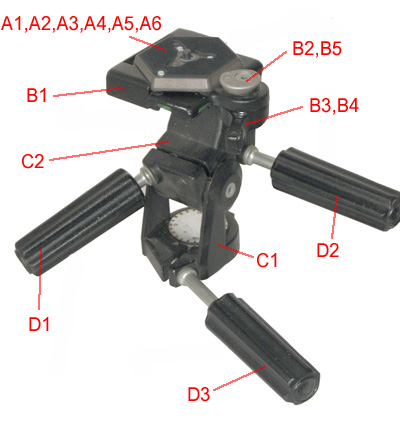

029 Version 2 Manfrotto Pan Head
A1 Quick Release 030-14
A2 Quick Release 030-38
A3 Quick Release 030-VHS
A4 Quick Release 030-ARCH 14
A5 1/4 QR Screw & Nut
A6 3/8 QR Screw & Nut

B1 USED Quick Release Top Plate
B2 QR Release Rotation Pin
B2 USED QR Release Rotation Pin
B3 USED QR Release Thumb Lever
B4 USED QR Return Spring
B5 USED QR Locking Cam

C1 USED Base & Pan Forks
C2 USED Tilt Body

D1 USED Long Handle
D2 USED Middle Handle
D3 USED Short Handle

Editor note: Parts marked as USED are reconditioned
and only available as USED. Where there is a dual listing
the one not showning USED is the NEW part.

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
Click on the link to see the actual Part picture. Links will turn
red on "mouse-over' and blue after they have been visited.
