Manfrotto 055 Version 1
Made after 1999-02-09
Also called Bogen 3020, 3021 or Manfrotto 055, parts list is for tripods made before 1995 may be as old as 1985. This Version is often marked as 055. This style was any 3021 made in silver color.
All parts supplied are for the silver tripods unless otherwise noted. USED parts are marked as USED, parts not marked as USED are new.

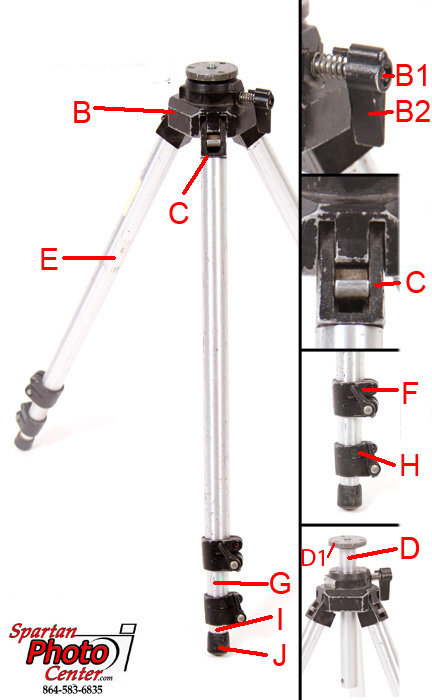

A (not shown)
B USED Main Casting Assembly
B1 USED Center Column Locking Shaft & Brake (Also sold with Part B assembly)
B2 Center Column Lock Knob
B2 USED Center Column Lock Knob
B4 Screw-in Strap Lanyard Stud
C USED Leg Brace & Silver Tube Assembly
C1 USED Leg Release Button
D USED Long Silver Center Column
D USED Long Black Center Column
D USED Short Silver Center Column
D USED Short BLack Center Column
D USED Short Silver Column Extension
D USED Short Black Center Column
D1 Center Column Grub Screw
D1 Center Column Grub Screw - 5 Pack
D2 Center Column Rubber Cushion - 2 pack
D3 USED Center Column Rubber Cap
D4 USED Center Column Joining Shim
E USED Complete Leg Assembly
F USED Upper Leg Lock
F1 Single Spiral Leg Lock Flip Lever
G USED Silver Middle Leg Tube
G USED Black Middle Leg Tube
H USED Lower Leg Lock
H1 Single Spiral Leg Lock Flip Lever
I USED Silver Bottom Leg Tube
J1 Rubber Feet (set of 3)
J2 Spike Feet Set
J2 Suction Cup Feet (set of 3)
K Cable Clip & Plastic Wrench
L Strap Lanyard
L2 Tripod Strap
Editors Notes: The main casting parts (parts B) and leg braces (parts C) are NOT interchangeable with later models. Click on the numbered link to see the actual part picture.
This is not the correct parts list, but this is the oldest one we can find.
Only the C parts Leg Brace and Upper Tube are different.
