055PROB Version 3- Black Aluminum Tripod

Made after 2004-04-21

Same as the 055PRO except this has black leg tubes.
This version has different parts from the 055MF, 055XB, 055XDB and 055XPROB

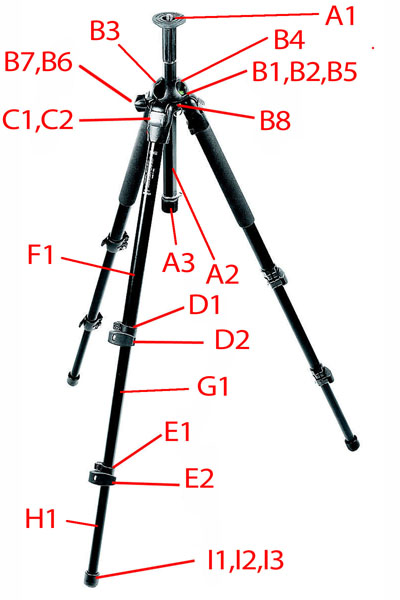

MANFROTTO 055PRO TRIPOD A1 Center Column Plug
A2 Black Center Column Assy
A3 Center Column Cap

B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
B3 USED Left Half Pro (with label)
B4 USED Right Half Pro
B5 Strap Loop
B5 USED Strap Loop
B6 Center Column Lock Shoe
B6 USED Center Column Lock Shoe
B7 Lock Knob
B7 USED Lock Knob
B8 Friction Bearing

C1 Leg Brace
C1 USED Leg Brace
C2 USED Leg Release Button

D1 USED Upper Leg Lock
D2 Snap Lever For Both Leg Locks

E1 USED Lower Leg Lock
E2 Lower Snap Lever

F1 USED Black Upper Leg Tube
F2 Upper Leg Clip(not a stock item)

G1 USED Black Middle Tube

H1 USED Black Lower Leg Tube

I1 USED Black Bottom Tube & Foot
I2 Rubber Feet (set of 3)
(standard on this tripod)
I3 Spike Feet (set of 3)

Editor note: Not all parts are NOT interchangeable on the 055PRO series; especially the MT055 and the 055. Check your modle carefully.

Parts marked as USED are reconditioned and only available as USED. Where there is a dual listing the one not showning USED is the NEW part. Item B5 for example.

Item numbers listed in the index on the right column may not be shown
on the picture because the part may be obscured or is inside another part or itis
underneath another part and cannot be shown. Click on the link to see the actual Part picture. Links will turn red on "mouse-over' and blue after they have been visited.
