055CXPRO3 Version 2 - Carbon FiberTripod

Made after 2008-05-30
For Serial Number A1351025 to A3076637

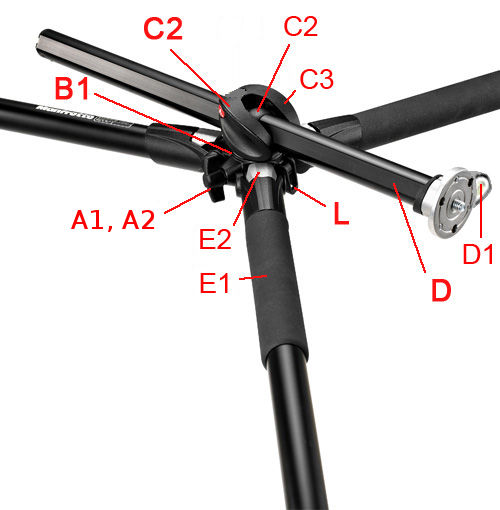

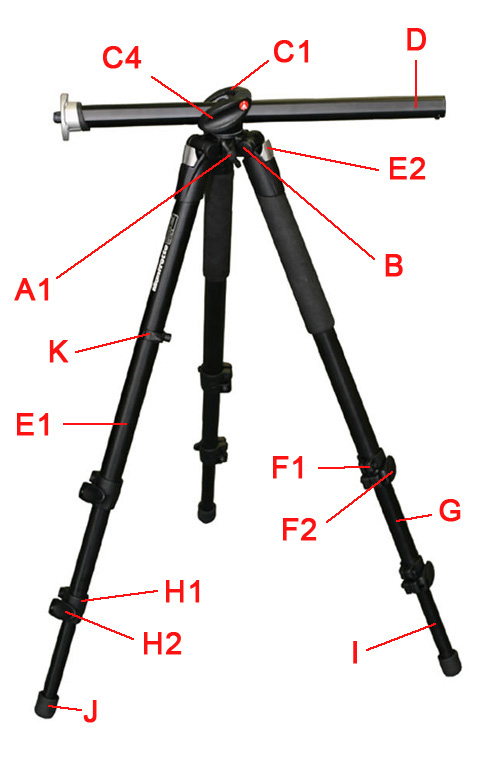

A1 Center Column Lock Knob
A2 Center Column Brake Shoe

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate

C1 Left Side Pro Casting
(not a stock item)
C2 Rotation and Tilt Bushing
(not a stock item)
C3 Right Side Pro Casting
(not a stock item)

D Center Column Assy
D1 Bubble Level

E1 Leg Brace & Upper Leg Tube
E2 Leg Extender Release Button
E3 Clamping Collar Sleeves (set)
E4 Leg Tube Sleeves (set)

F1 Upper Leg Lock Assy
F2 Upper Snap Lever

G Middle Leg Tube
(not a stock item)

H1 Lower Leg Lock Assy
H2 Lower Snap Lock Lever

I Lower Leg Tube

J Rubber Foot (set of 3)

K Cable Clip & Wrench

L Strap Loop

These pictures are for illustration only

Editor note: Item numbers listed in the index on the right column may not be shown
on the picture because the part may be obscured or is inside another part or itis
underneath another part and cannot be shown. Click on the link to see the actual Part
picture. Links will turn red on "mouse-over' and blue after they have been visited.
