055XB Version 1 - Aluminum Tripod

Made after 2007-01-05
For Serial Number A0794001

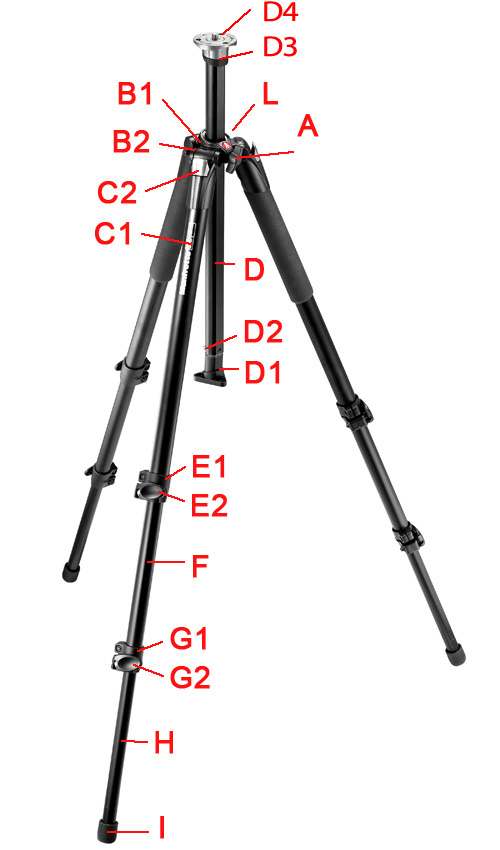

#3604 - 055XB Complete Tripod Assembly

#3808 - A1 Center Column Lock Knob
#4671 - A2 Center Sliding Block

#253 - B1 Main Casting Top Plate
#4292 - B2 Main Casting Bottom Plate

#3822 - C1 Leg Brace & Upper Leg Tube
#4399 - C2 Leg Extender Release Button

#2633 - D Center Column
#8022 - D 055XSCC Short Center Column
#4400 - D1 Center Column Plug
#4401 - D2 Plug Spring
D3 Rubber Spacer
#1330 - D4 Grub Screw - Single
#5782 - D4 Grub Screw - 5 Pack
3 grub screws required

#3824 - E1 Upper Leg Lock Assy
#4396 - E2 Upper Snap Lever

#4893 - F Middle Leg Tube

#3813 - G1 Lower Leg Lock Assy
#3815 - G2 Lower Snap Lock Lever

#4892 - H Lower Leg Tube

#3823 - I Rubber Foot (set of 3)
#1305 - I1 Spike Feet Accessory (set of 3)

#3147 - K Cable Clip & Wrench

#4895 - L Strap Loop

Notes: Part C2 was changed from ver 1 to ver 2

Editor note: Item numbers listed in the index on the right column may
not be shown on the picture because the part may be obscured or is
inside another part or itisunderneath another part and cannot be shown.
Click on the link to see the actual Partpicture. Links will turn red on
"mouse-over' and blue after they have been visited.
