055XPROB Version 2 - Aluminum Tripod

Made after 2008-10-15
For Serial Number A1612001

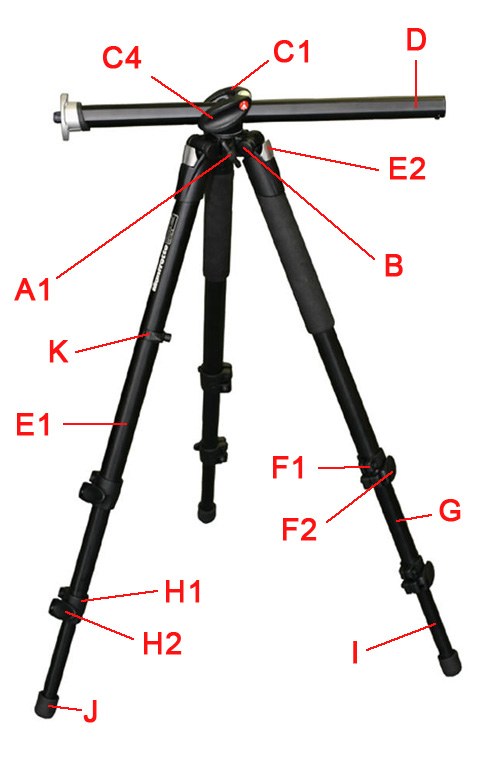

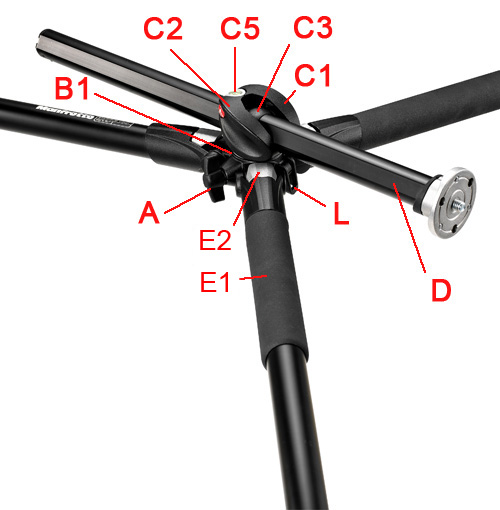

055XPROB Complete Tripod Assembly

A1 Center Column Lock Knob
A2 Center Column Brake Shoe

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate

C1 Left Side Pro Casting
C2 Pro Bushing
C3 Pro Rotation Bushing
C4 Right Side Pro Casting
C5 Bubble Level

D Center Column
D 055XSCC Short Center Column

E1 Leg Brace & Upper Leg Tube
E2 Leg Extender Release Button

F1 Upper Leg Lock Assy
F2 Upper Snap Lever

G Middle Leg Tube

H1 Lower Leg Lock Assy
H2 Lower Snap Lock Lever
I Lower Leg Tube

J Rubber Foot (set of 3)
J1 Spike Feet Accessory (set of 3)

K Cable Clip & Wrench
L Strap Loop

Notes: Part E2 was changed from ver 1 to ver 2

Editor note: Item numbers listed in the index on the right column may not be shown
on the picture because the part may be obscured or is inside another part or itis
underneath another part and cannot be shown. Click on the link to see the actual Part
picture. Links will turn red on "mouse-over' and blue after they have been visited.
