055XWNB Version 1 - Aluminum Tripod

Made after 2007-01-05
For Serial Number A0794001

This version has different parts from the 055XB and 055XPROB

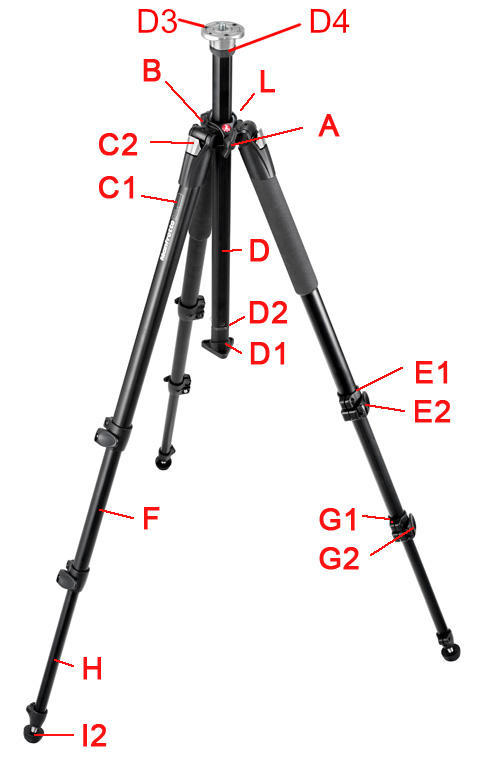

#3808 - A1 Center Column Lock Knob
#4671 - A2 Center Sliding Block

#253 - B1 Main Casting Top Plate
#4292 - B2 Main Casting Bottom Plate

#3822 - C1 Leg Brace & Upper Leg Tube
#4399 - C2 Leg Extender Release Button

#2633 - D Center Column
#8022 - D 055XSCC Short Center Column #4401 - D1 Plug Spring
#4400 - D2 Center Column Plug

#3824 - E1 Upper Leg Lock Assy
#4396 - E2 Upper Snap Lever

#4893 - F Middle Leg Tube

#3813 - G1 Lower Leg Lock Assy
#3815 - G2 Lower Snap Lock Lever

#4892 - H Lower Leg Tube

#3823 - I1 Rubber Foot (set of 3)
#1305 - I2 Spike Feet Accessory (set of 3)

#3147 - K Cable Clip & Wrench

#4895 - L Strap Loop
Editor note: All parts are interchangeable between versions 1 & 2

Item numbers listed in the index on the right column may not be shown
on the picture because the part may be obscured or is inside another part or itis
underneath another part and cannot be shown. Click on the link to see the actual Part picture. Links will turn red on "mouse-over' and blue after they have been visited.
