057B Dolly Version 1

Made about 2005-05-10

Manfrotto 057b dolly No other parts are stocked by us for this model


A1 USED Top Pivot Assy
A2 USED Support Arm
A3 Pivot Assy (without knobs)
(not a stock part)
A4 USED Clamp and Screws
A3 Pivot Assy (without knobs)
(not a stock part)

B1 Wheel
B1 USED Wheel
B2 USED Wheel & Foot Assy
B3 Locking Foot (set of 5)

C1 USED Locking Rod
C2 Locking Flip Lever (not a stock item)

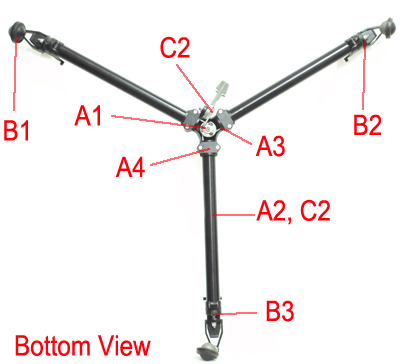

Editor note: The bottom view is shown, no other versions
have been identified.

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
