128LP VERSION 3 - Video Pan Head

Made about 2006-03-01

MANFROTTO 128LP VERSION 3 VIDEO HEAD

A1 1/4-20 Camera Screw
A2 3/8-16 Camera Screw

B1 Top Plate & Camera Screw
B2 Rubber Pad

C1 USED Pan Handle Clamp only
C2 USED Pan Handle Lock Knob only
C3 USED Pan Handle only
C3 REPLACEMENT Pan Handle only

D1 USED Tilt Locking Knob
D2 USED Tilt Bearing Stack
D3 USED Tilt Threaded Pin
D4 USED Fluid Disk for Elevation/tilt
(this part comes checked and pre greased)

D5 Tension Screw

E1 USED Panning Locking Knob
E2 USED Panning Bearing Stack
E3 USED Panning Threaded Pin
E4 USED Fluid Disk for Panning
(this part comes checked and pre greased)

E5 Panning Main Housing

F Base (not a stock item)

G Tilt Fluid Grease (not shown) for parts E4 and D4

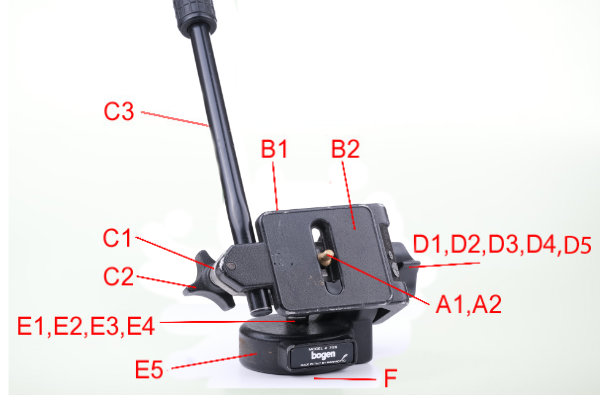

Editor note: Item numbers listed in the index on the right
column may not be shown on the picture because the part
may be obscured or is inside in underneath another part and
cannot be shown. Click on the link to see the actual Part
picture. Links will turn red on 'mouse-over' and blue after they
have been visited.
