155RC Double Ball Joint Head with Quick Release

Made after 2000-05-30

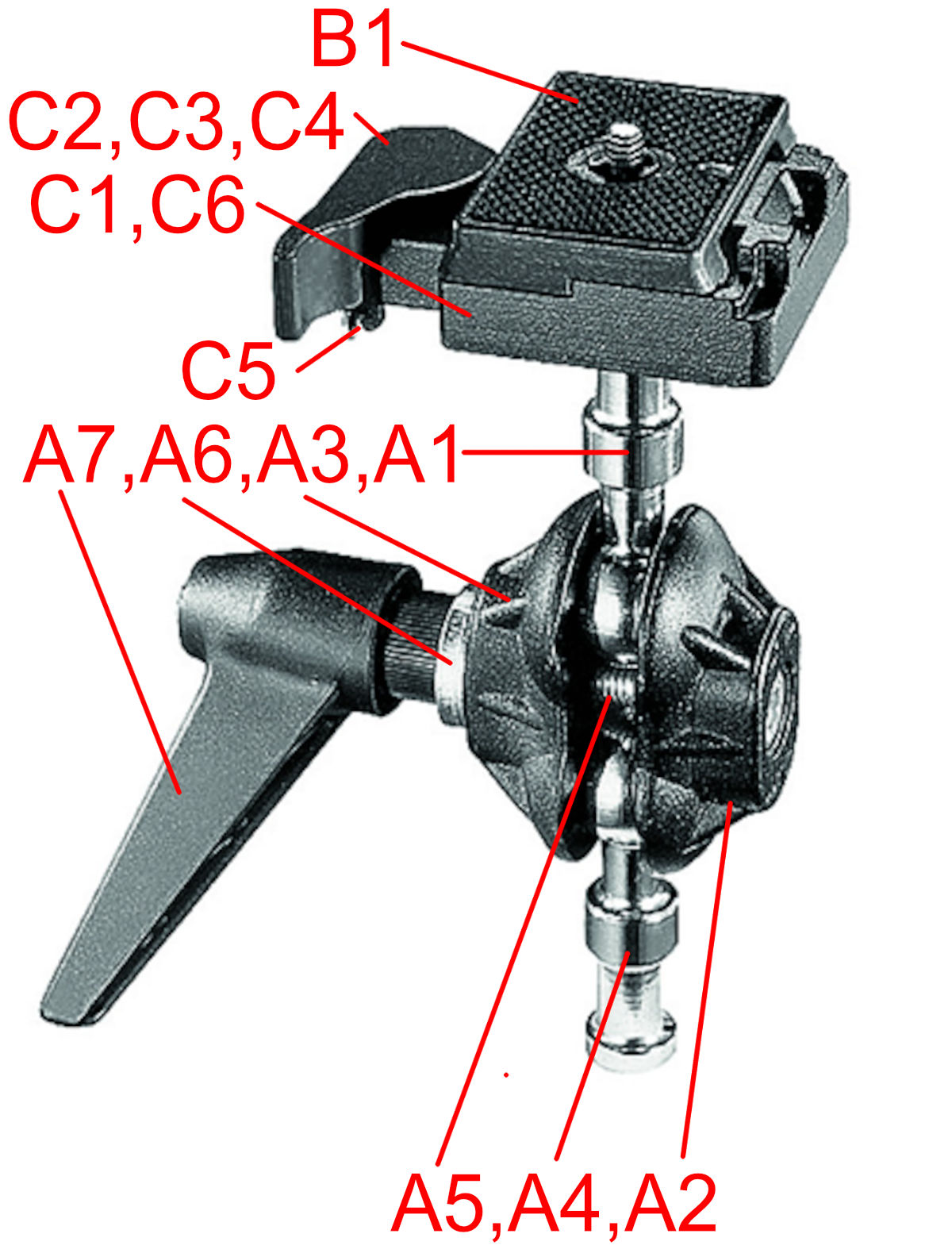

155BKL Double Ball HeadR396 TOP PLATE ASSEMBLY



#5142 - A 155BKL Double BallJoint Head

A1 RC Stud Screw Ball (not a stock item)
#5187 - A2 Side Plate
#5188 - A3 Side Plate with Hole
#5163 - A4 1/4 Female Screw Ball
#5164 - A5 Bolt & Bearing
A6 Washer (not a stock item)
#5131 - A7 Ball Lock Knob

















#1304 - B1 Quick Release 1/4-20 Screw
#1313 - B2 Quick Release 3/8 Screw
#1308 - B3 Quick Release 1/4 Anti-Rotate
#1362 - B4 1/4 Thumbscrew
#1360 - B5 3/8 Thumbscrew









#1484 - C1 QR Safety Catch
#1333 - C2 QR Cam Thumb Lever
#3664 - C3 QR Cam Return Spring (not shown)
#1339 - C4 QR Cam Pivot Screw
C5 Safety release Lever (not a part)
#4366 - C6 QR Plate Receiver
