190CL Version 3 -Aluminum Tripod

Made after 2004-09-02

Under construction

For serial number from A0001098
This version has different parts from the 190, 190x and MT190 series tripods.

  A1 USED Center Column
A2 Center Column Plug
(not a stock item)
A3 USED Center Column Spring

B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Strap Loop
B4 USED Locking shoe
B5 USED Lock Knob

C1 USED Leg Brace (not a stock item)
C2 USED Leg Release Button

D1 USED Upper Leg Lock
D2 DISC Snap Lever

E1 Lower Leg Lock
E2 Snap lever

F1 Upper Leg Tube (not a stock item)
F2 Cable Clip

G1 Middle Tube

H1 Lower Leg Tube

I1 Rubber Foot
(standard on this tripod)

Editor note: Parts marked as USED are reconditioned and only available as USED. Where there is a dual listing the one not showning USED is the NEW part. Item L for example.

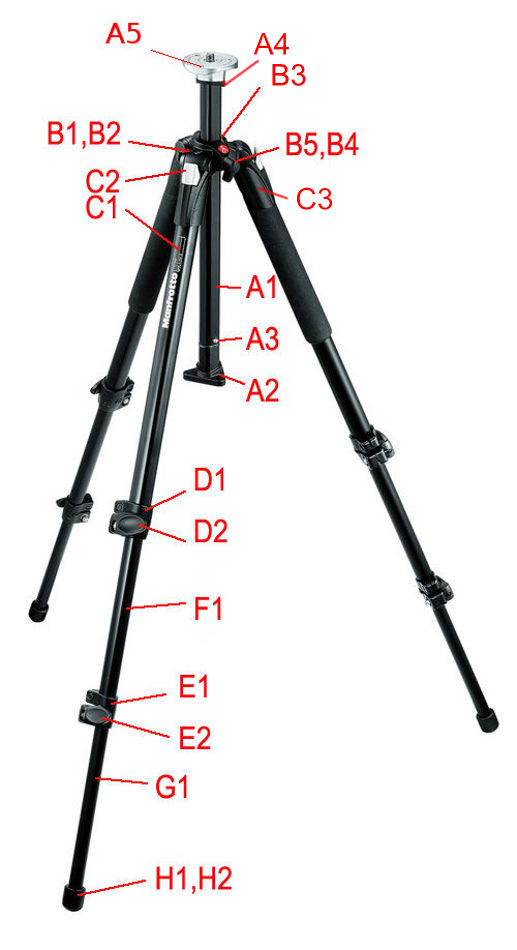

Item numbers listed in the index on the right column may not be shown
on the picture because the part may be obscured or is inside another part or itis
underneath another part and cannot be shown. Click on the link to see the actual Part picture. Links will turn red on "mouse-over' and blue after they have been visited.
