190CL- Aluminum Tripod

Made before 1997-01-20

This version has different parts from the 190N, 190X and MT190 series tripods.

Manfrotto 190-3 version 3 #5862 - A1 USED Center Column
#3601 - A2 Center Column Cap - Single
#5780 - A2 Center Column Cap -5 Pack
#1330 - A3 Grub Screw - Single
#5782 - A3 Grub Screw - 5 Pack
3 grub screws required

#4962 - B1 USED Upper Main Casting
#4963 - B2 USED Lower Main Casting
#4970 - B3 Center Column Lock Shoe
#1406 - B4 USED Center Column Lock Knob

#5040 - C1 USED Leg Brace
#350 - C2 USED Leg Release Button

#3502 - D USED Upper Leg Tube

#1348 - E1 USED Upper Leg Clamp Assembly
#5268 - E2 Leg Lock Screw (deep throat)

#4971 - F USED Middle Leg Tube

#4960 - G1 USED Lower Leg Clamp Assembly
#5268 - G2 Leg Lock Screw (deep throat)

#4996 - H Bottom Leg Tube
#4972 - H USED Bottom Leg Tube

#3026 - I1 Rubber Foot
#4165 - I2 Retracable Spike Foot

#5654 - OpTech 1 inch Leg Wrap

Editor note: Parts marked as USED are reconditioned and
only available as USED. Where there is a dual listing the one
not showning USED is the NEW part. Item B5 for example.


The main difference between this version and later versions is
C1, C2 and the main casting B1, B2.

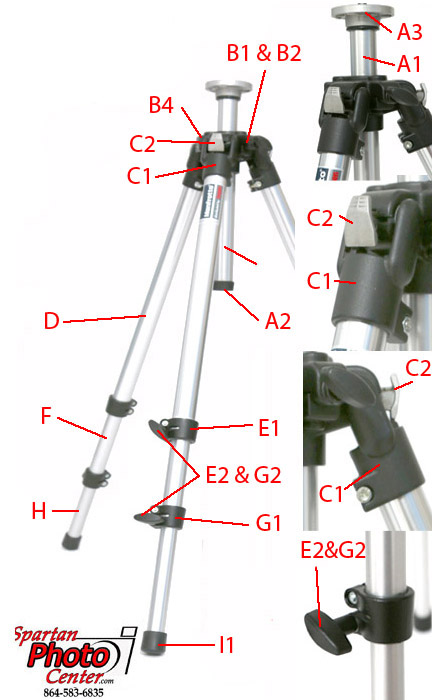

Item numbers listed in the index on the right column may not be
shown on the picture because the part may be obscured or is inside
another part or itisunderneath another part and cannot be shown.
