190CXPR3 version 2 - Carbon Fiber Tripod

Made after 2012-01-10
For Serial Number From A2944309

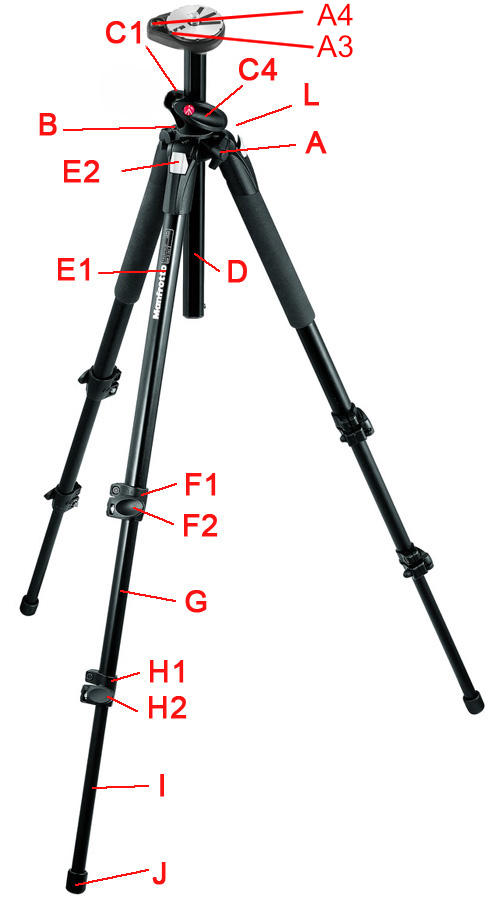

190cxv3 carbon fiber tripod A1 Center Column Lock Knob
A2 Center Column Brake Shoe

B1 Main Casting Top Plate (not a stock item)
B2 Main Casting Bottom Plate (not a stock item)

C1 Left Side PRO Casting (not a stock item)
C2 Pro Cradle
C3 Pro Rotation Ring
C4 Right Side PRO Casting (not a stock item)
C5 Pro Rotation Bushing

D Center Column

E1 Leg Brace & Upper Leg Tube
E2 Leg Extender Release Button
E3 Leg Sleeves (set of 3 sizes, mounts on each tube)
E4 Leg Collars (set of 3 sizes, mounts inside each leg lock)

F1 Lower Leg Lock Assy (not a stock item)
F2 Lower Snap Lock Lever

G Middle Leg Tube (not a stock item)

H1 Lower Leg Lock Assy (not a stock item)
H2 Lower Snap Lock Lever

I Middle Leg Tube (not a stock item)

J1 Rubber Foot (set of 3)
J2 Spike Feet Accessory 16mm dia.(set of 3)

K Strap Loop

L Cable Clip & Wrench

Editor note: All versions parts are compatible

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
