190CXV3 version 1 - Carbon Fiber Tripod

Made after 2008-01-22
For Serial Number From Axxxx

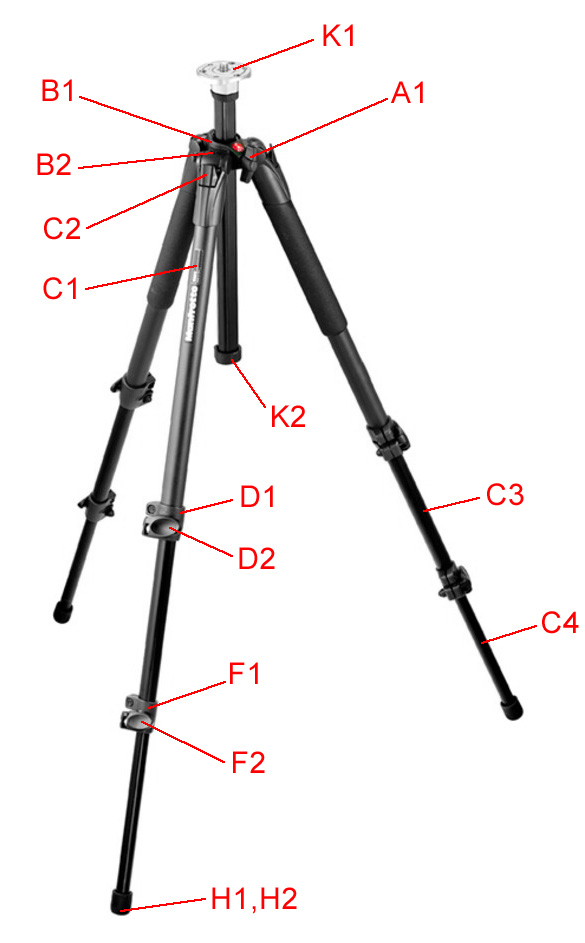

190cxv3 carbon fiber tripod #3808 - A1 Center Column Lock Knob
#4403 - A2 Center Column Brake Shoe

#1431 - B1 Main Casting Top Plate
#1428 - B2 Main Casting Bottom Plate

C1 Leg Brace & Upper Leg Tube (not a stock item)
#5873 - C2 Leg Extender Release Button
C3 Middle Leg Tube (not a stock item)
C4 Lower Leg Tube (not a stock item)

D1 Upper Leg Lock Assy
#3815 - D2 Upper Snap Lever

#2491 - E1 Leg Sleeves
#2505 - E2 Leg Collars

F1 Lower Leg Lock Assy (not a stock item)
#3816 - F2 Lower Snap Lock Lever

#3812 - H1 Rubber Foot (set of 3)
#3817 - H2 Spike Feet Accessory 16mm dia.(set of 3)

#4895 - I Strap Loop

#3147 - J Cable Clip & Wrench

K1 Center Column (not a stock item)
#4132 - K2 Center Column Rubber Boot
Editor note: All versions parts are compatible

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
