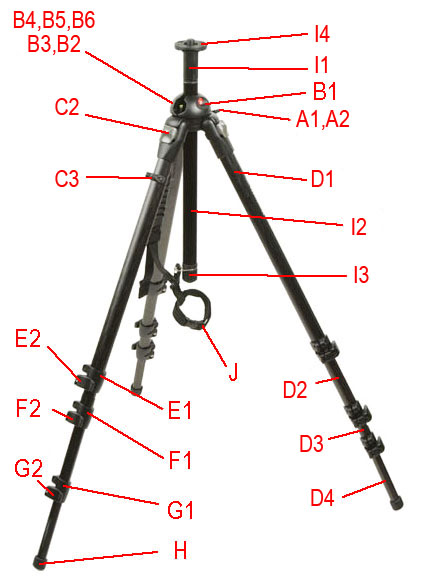

190MF4 - Carbon Fiber Tripod

Made after 2004-11-29
For Serial Number From A0010393

A1 Lock Knob
A2 Center Column Lock Shoe

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Left Half Pro Ball
B4 Friction Bearing
B5 Right Half Pro Ball
(with Manfrotto engraving)
B6 Side Bubble Level-Single
B6 Side Bubble Level-10 pack

C1 USED Strap Loop
C2 Leg Release Button
C3 Cable Clip & Wrench

D1 Upper Leg Tube & Brace
D2 Upper Middle Tube
D3 Lower Middle Leg Tube
D4 Bottom Tube

E1 Upper Leg Lock Assy
E2 Upper Snap Lever

F1 Middle Leg Lock Assy
F2 Middle Snap Lever

G1 Lower Leg Lock Assy
G2 Lower Snap Lever

H1 Rubber Feet (set of 3)

I1 Center Column Top
I2 Black Center Column Knob Cap
I3 Center Column Post
I4 Grub Screw - single
I4 Grub Screw - 5 Pack

J1 Leg Shims
(to be mounted on tubes)
J2 Clamp Collars
(to be mounted on clamping tubes)
J3 458L Hang Strap

Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
