190XB Version 2 - Aluminum Tripod

Made after 2007-05-21
For Serial Number From A0893684

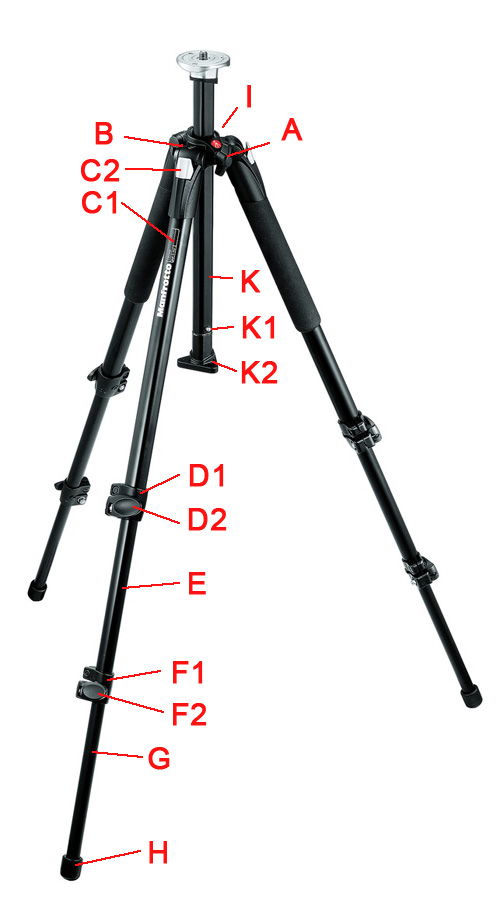

190XB Complete Tripod

A1 Center Column Lock Knob
A2 Center Column Brake Shoe

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate

C1 Leg Brace & Upper Leg Tube
C2 Leg Extender Release Button

D1 Upper Leg Lock Assy
D2 Upper Snap Lever

E Middle Leg Tube

F1 Lower Leg Lock Assy
F2 Lower Snap Lock Lever

G Lower Leg Tube


H Rubber Foot (set of 3)
H1 Spike Feet Accessory (set of 3)

I Strap Loop

J Cable Clip & Wrench

K Center Column Assy
K1 Plug Spring
K2 Center Column Plug

Part C2 was added from version 1 to version 2. It was included in the assembly with part B2.

Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
