190XDB Version 2 - Aluminum Tripod

Made after 2007-05-21
For Serial Number From A0893684

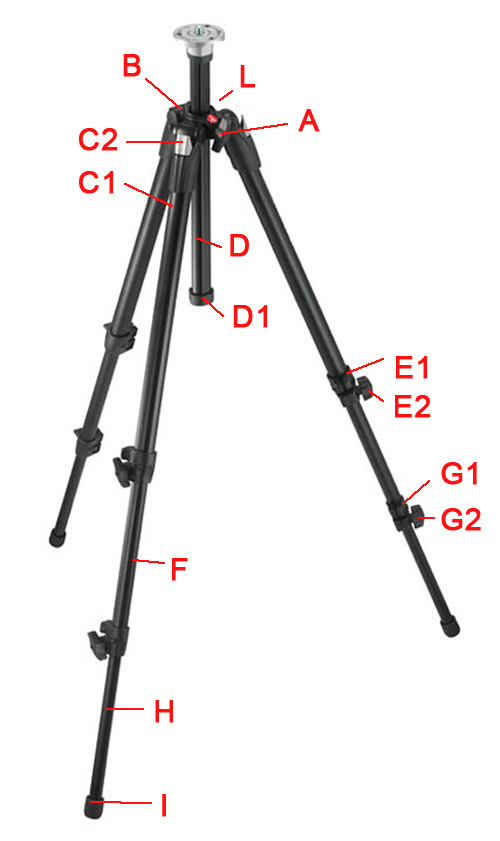

190XDB Complete Tripod

A1 Center Column Lock Knob
A2 Center Column Brake Shoe

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate

C1 Leg Brace & Upper Leg Tube
C2 Leg Extender Release Button

D Center Column Assy
D1 Center Column Plug

E1 Upper Leg Lock Assy
E1 USED Lower Leg Lock
E2 Upper Lock Knob

F Middle Leg Tube

G1 Lower Leg Lock Assy
G2 Lower Lock Knob

H Lower Leg Tube

I Rubber Foot (set of 3)
I1 Spike Feet Accessory (set of 3)

J (not a part)

L Strap Loop

Added Part C2 on this version. Previous version was part of B2 Assembly. It changes to a different on versions 3 and 4.

Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
