234RC Version 4 Tilt Head
Made after 1999-03-29

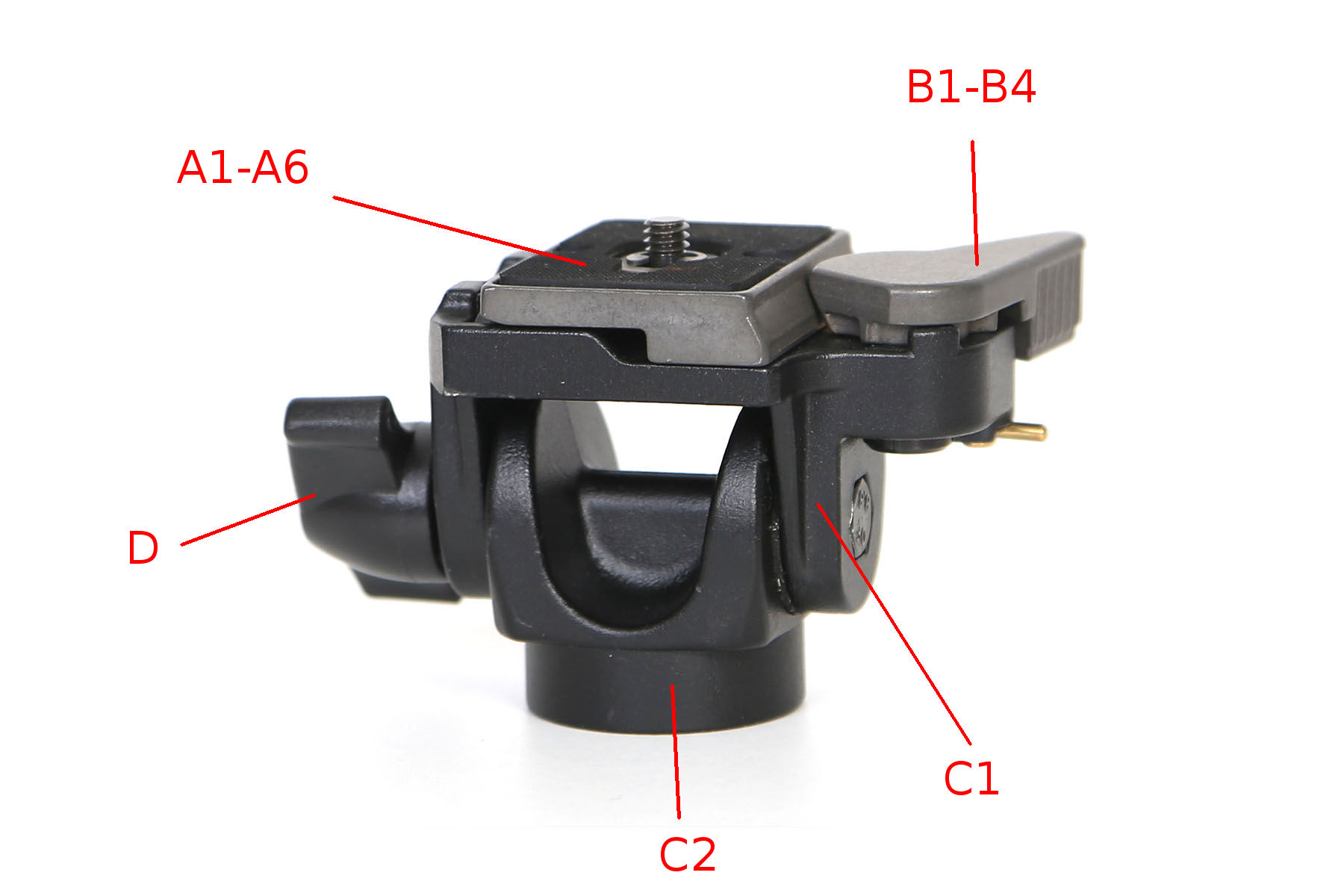

Manfrotto 234RC Head


#1304 - A1 Quick Release 1/4-20 Screw
#1313 - A2 Quick Release 3/8 Screw
#1308 - A3 Quick Release 1/4 Anti-Rotate
#1536 - A4 Quick Release 3/8 Anti-Rotate
#1362 - A5 1/4 Thumbscrew
#1360 - A6 3/8 Thumbscrew

#1333 - B1 QR Cam Thumb Lever
#3664 - B2 QR Cam Return Spring
#1339 - B3 QR Cam Pivot Screw
#1484 - B4 QR Safety Catch

C1 Top Plate (not a stock part)
C2 Base Casting (not astock item)

#4189 - D Tilt Knob & Bolt


Editor note: All versions of this item are interchangeable.
