244RC version 2 Variable Friction Arm with RC Plate

Made after 2005-05-10


244RC Magic Arm
R352 top plate

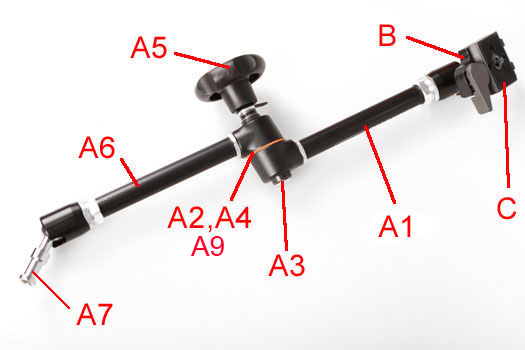

244RC Variable Friction Arm

A1 Arm Assy
A2 Spacers
A3 Bolt & Bearings
A4 Internal Tension Bearing
A5 Tension Knob
A6 3/8 Stud & Arm Assy
A7 3/8 Stud
A8 1/4 Stud for RC Plate
A9 Ball Bearing Set

Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.

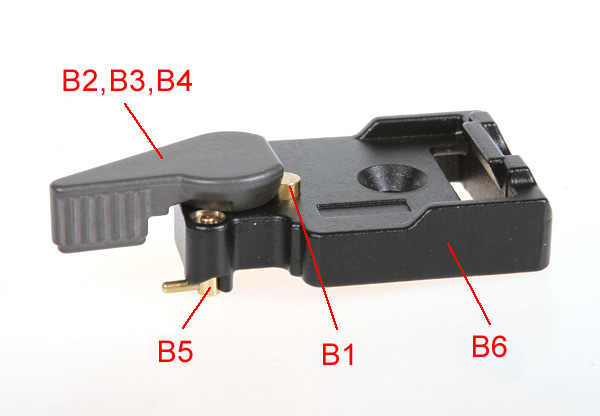

B Complete RC Quick Release Assembly
B1 QR Safety Catch
B2 QR Cam Thumb Lever
B3 QR Cam Return Spring
B4 QR Cam Pivot Screw
B5 QR Receiver Screw (not shown)


Quick Release Plates
C1 1/4 200PL Plate
C2 3/8 200PL Plate
C3 1/4 Anti-Rotate Plate
C4 3/8 Anti-Rotate Plate
C5 1/4 Turnbuckle Screw
C6 3/8 Turnbuckle Screw



Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.
