323 Version 2 - 200PL Quick Release Adapter Set

Made after 2005-05-10

323 quick release adapter

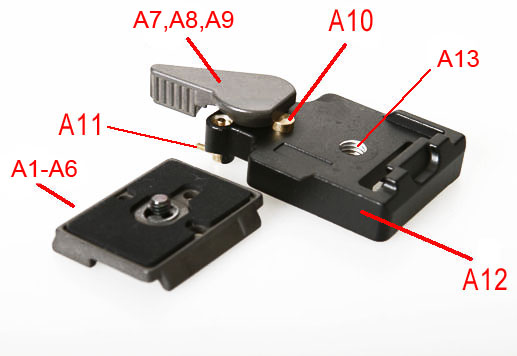

323 Quick Release Adapter Assembly

A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A5B 3/8 Thumbscrew


A6 QR Cam Thumb Lever
A7 QR Cam Return Spring
A8 QR Cam Pivot Screw

A10 QR Safety Catch

A9 3/8 to 1/4-20 Screw Adapter

A11 Is not a part
A12 Base Plate Assembly (not a stock item)


Editor note:Click on the link to see the actual Part picture. Links will turn red on "mouse-over' and blue after they have been visited.
