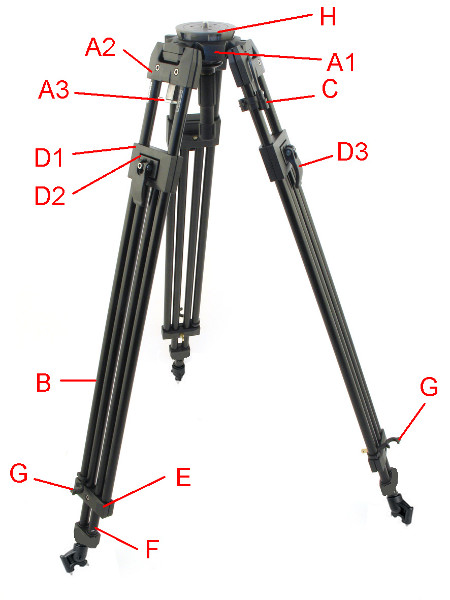

350 MVB Version 3 Tripod

Made after 1999-01-28


A1 Main Casting
A2 Slider Assy
A3 Leg Brace Assy
A4 Leg Pivot
B Upper Leg

C Clip & Wrench

D1 Leg Slider Assy
D2 Slider Clamp (not a stock item)
D3 Slider Locking Lever

E Leg Yoke

F1 Bottom Leg Tube & Foot (not a stock item)
F2 Rubber Foot Cover
F3 USED Rubber Padded Foot
F4 Rubber Padded Feet, set of 3

G Leg Clip

H Ball Assembly 100mm
Click Here for parts for 500Ball


Editor note: Only Versions 3 and 4 have parts lists and are available. Part A4 is the newer part as the older part is not available. Click on the link to see the actual Part picture. Links will turn red on "mouse-over' and blue after they have been visited.
