351MVB2 Version 3 Video Tripod

Made after 2006-01-24

351MV2 VERSION 3
A1 USED Main Casting
A2 USED Leg Pivot & Screw Caps
A3 USED Leg Release
A4 Single Screw Cap

B1 Upper Leg Tube
B2 USED Middle Leg Tube
B3 Bottom Leg Tube
B4 Leg Lock Snap Lever
B5 Spreader Link
B6 USED Complete Leg Assy
includes parts B1, B2, B3


C1 Cable Clip
C2 Cable Clip and Wrench

D1 USED Leb Clamp Assembly
D2 Upper Leg Lock Lever
D3 Upper Leg Lock Shoe

E1 Rubber Foot Cover
E2 USED Rubber Padded Foot
E3 Rubber Padded Feet, set of 3

F1 Ball Assembly
F2 Ball Only (not a stock item)
C Tightening Handle Assy
Click Here for parts for 520Ball

G 537SPRB Spreader Assembly
Editor note: Versions 3 and 4 are different in that B3
assmebly parts are NOT interchangeable between
versions. All other parts are the same. the only way to
discern versions is to use the Sanp Lever B4 to
visually identify them.

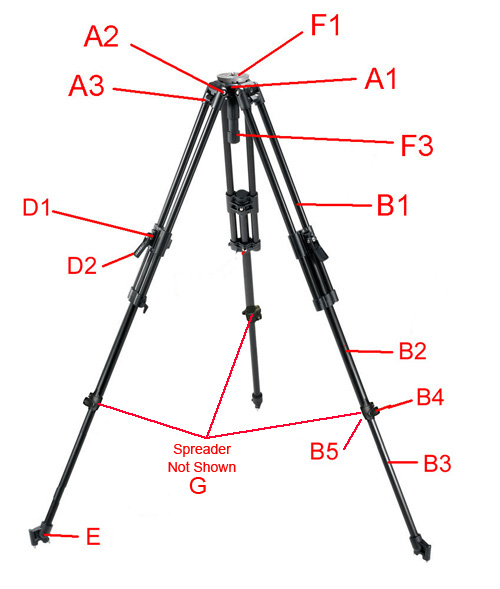

Item numbers listed in the index on the right
column may not be shown on the picture because the part
may be obscured or is inside in underneath another part
and cannot be shown. Click on the link to see the actual
Part picture. Links will turn red on "mouse-over' and blue
after they have been visited.
