498 Version 2 Ball Head

Made about 2009-06-16
For Serial Number C1312490

USED parts are marked as USED, parts not marked as USED are new.

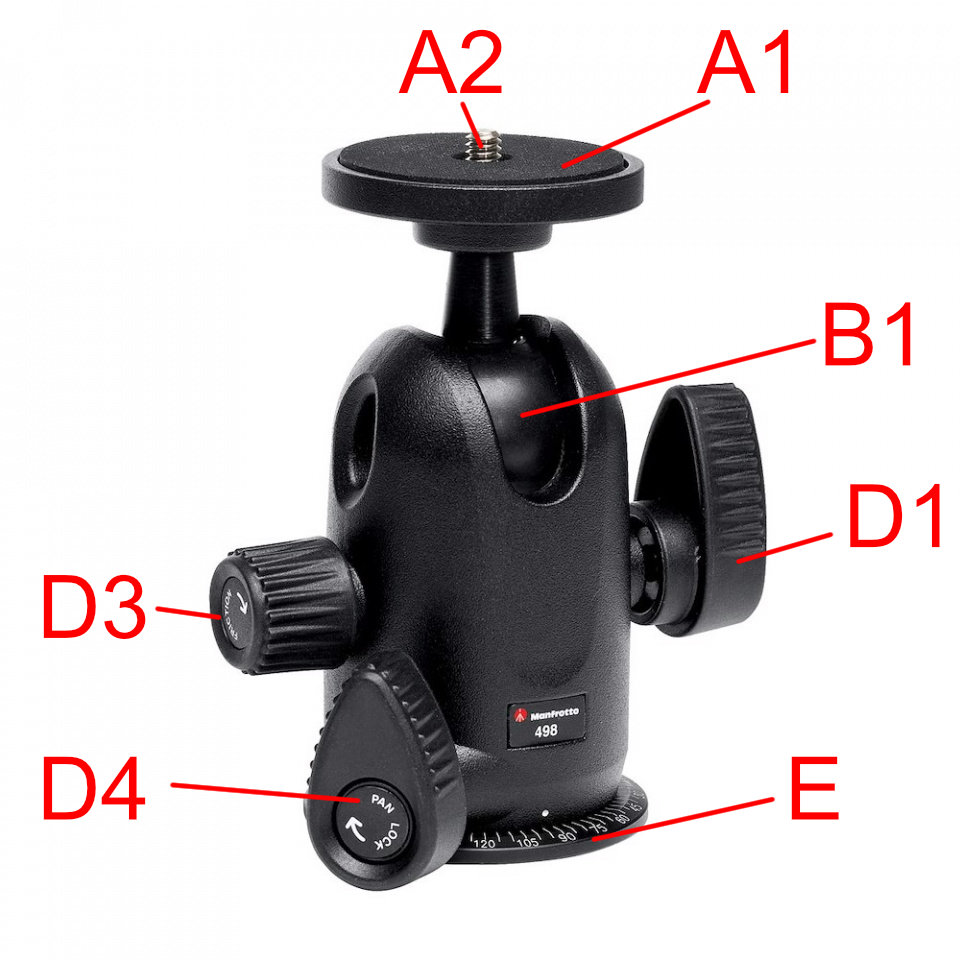

A1 Rubber Gripper
A2 Camera Screw - not a stock item
A3 Top Plate - not a stock item

B1 Ball (not a stock item)
B3 QR Receiver Attachment Screw

D1 Main Casting
D2 Control Knob (not a stock item)
D3 Drag Control Knob (not a stock item)
D4 Rotation Control Knob (not a stock item)

E1 Base Assembly (not a stock item)
E2 Fixed Bearing (not a stock item)
E3 Bearing With Spring (not a stock item)


Editor note: All versions are interchangeable. Click on the numbered link to see the actual part picture.
These pictures are for illustration Only
