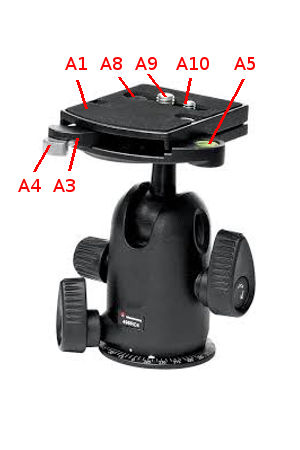

498RC4 Version 2 Ball Head

Made about 2009-06-16
For Serial Number C1312490




#1361 - A1 410PL Quick Release Plate Only
#1191 - A2 Pivot Screw
#1205 - A3 Release Lever
#1193 - A4 Safety Catch
#3665 - A5 Bubble Levels
A6 Not a Part
#6248 - A7 QR Receiver Plate Assy
#3513 - A8 Rubber Stopper
#1434 - A9 3/8-16 Screw (set of 2)
#1435 - A10 1/4-20 Screw (set of 2)

B1 Ball (not a stock item)
#1441 - B3 QR Receiver Screw

D1 Main Casting (not a stock item)
D2 Control Knob (not a stock item)
D3 Drag Control Knob (not a stock item)
D4 Rotation Control Knob (not a stock item)

E1 Base Assembly (not a stock item)
E2 Fixed Bearing (not a stock item)
E3 Bearing With Spring (not a stock item)

Notes: All versions are compatible

Editor note: Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured or is inside in
underneath another part and cannot be shown. Click on the link to see the
actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
