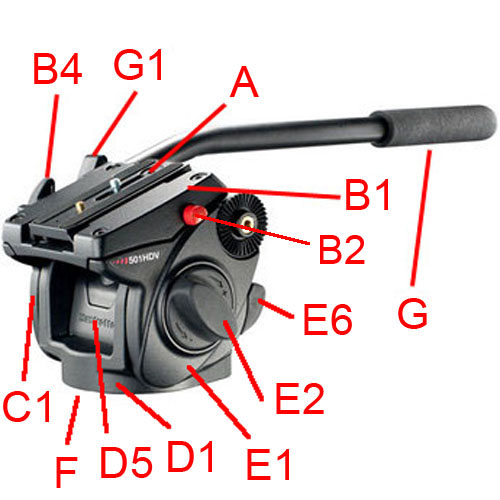

501HDV VERSION 1 - Video Pan Head

Made about 2006-05-05
For Serial Number C0884000



#1302 - A1 501PL Quick Release Plate
#2619 - A2 501PL Rubber Pads (set of 2)
#1435 - A3 1/4 QR Replacment Screw
#1434 - A4 3/8 QR Replacement Screw
#3513 - A5 Rubber Stopper
#5175 - A6 Anti-Rotation Pin

Quick Release Variations
#1374 - 500PLONG QR Plate
#1302 - 501PL QR Plate
#1468 - 501PLONG QR Plate
#3676 - 509PLONG QR Plate

#2628 - B1 Top Plate
#4689 - B2 QR Safety Lock Button
#4690 - B3 QR Lock Wedge
#1437 - B4 QR Plate Lock Knob

C1 Side Plate Friction Disk Side (not a stock item)
#4691 - C2 Tilt Tension Knob(not shown)
#2595 - C3 Tilt Friction Disk

D1 Main Housing (not a stock item)
#3665 - D2 Bubble Level
#4907 - D3 Main Bearing Stack

D4 Main Pivot Spring (not a stock item)
D5 Main Baffle (not a stock item)
D6 Main Tension Knob (not a stock item)
#4695 - D7 Cover Plate

E1 Side Plate Spring Side (not a stock item)
#4692 - E2 Rotating Tension Knob
E3 Side Plate Tension Bushing (not a stock item)
E4 Side Spring (not a stock item)
#4687 - E5 Rotating Lock Shaft
#4688 - E6 Rotating Lock Knob

F1 Base Plate (not a stock item)
#2595 - F2 Pan Friction Disk

#3499 - G Pan Handle Assembly
#1281 - G1 Pan Handle Clamp Knob
#1280 - G2 Pan Handle Clamp
#1393 - G3 Pan Handle Only

#4675 - H Fluid Grease Jar

Parts from the 501HDV are NOT compatible with the 501 Video Head
