504HD Video Head
with Bowl Base

Made after 2013-12-04

Quick Release Plate for 504HD
504PLONG QUICK RELEASE PLATE


#4939 - A 504PLONG QR Plate Assy

#5174 - A1 Rubber Pads (set of 2)
#1434 - A2 3/8-16 Screw (set of 2)
#1435 - A3 1/4-20 Screw (set of 2)
#3513 - A4 Rubber Stopper
#5175 - A5 Anti-Rotation Pin

Quick Release Variations
#1374 - 500PLONG QR Plate
#1302 - 501PL QR Plate
#1468 - 501PLONG QR Plate
#3676 - 509PLONG QR Plate

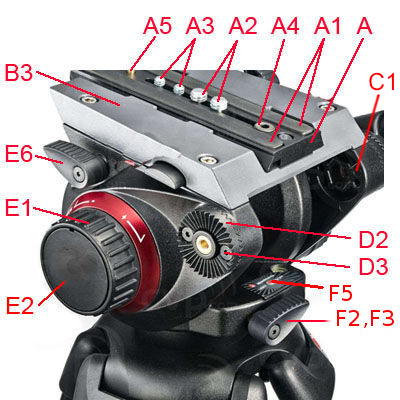

Manfrotto 504HD side parts

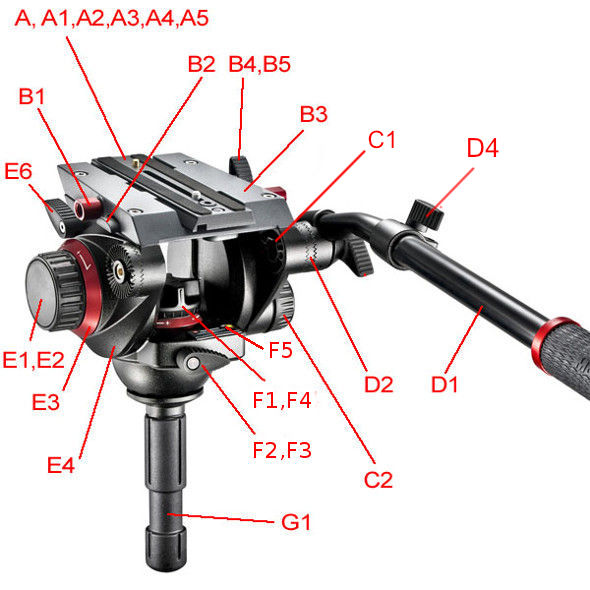

Manfrotto 504HD Video Head


B1 Accessory Pin (not a stock item)
#8118 - B2 QR Safety Lock
#8081 - B3 QR Receiver - Top Plate
#4690 - B4 QR Locking Shoe
#8116 - B5 QR Lock Knob

C1 Side Plate (left side)
#8149 - C2 Tension Knob

#4951 - D1 Pan Handle with Clamp
#8104 - D2 Pan Handle Locking Disk (1 on each side)
#5067 - D3 Retaining Screws for Pan Disk

#8117 - E1 Tilt Tension Locking Knob
#8177 - E2 Knob Bezel
E3 Side Bezel (not a stock item)
E4 Right Side Plate (not a stock item)
E5 Pressure Rocker (not a stock item)
#8109 - E6 Tilt Lock Knob
#8188 - E7 Fluid Disk
E8 Tension Spring (not a stock item)

F1 Pan Lock Knob (not a stock item)
#8109 - F2 Pan Tension Knob
F3 Main Casting (not a stock item)
#357 - F4 Pan Fluid Disk

#8103 - G1 Level Handle

Editor note: All parts are interchangeable

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
