509HD Video Head
with Bowl Base

Made after 2011-04-26

Quick Release Plate for 509HD

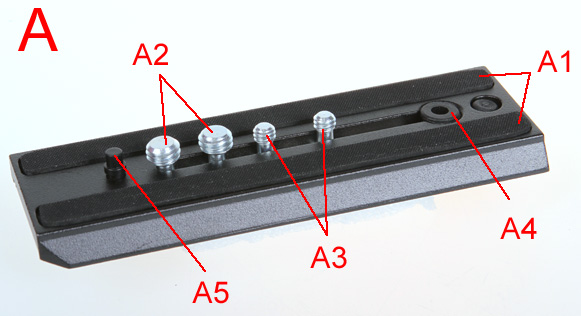

509PLONG quick release plate


#3676 - A 509PLONG QR Plate Assy

#5174 - A1 Rubber Pads (set of 2)
#1434 - A2 3/8-16 Screw (set of 2)
#1435 - A3 1/4-20 Screw (set of 2)
#3513 - A4 Rubber Stopper
#5175 - A5 Anti-Rotation Pin

Quick Release Variations
#1374 - 500PLONG QR Plate
#1302 - 501PL QR Plate
#1468 - 501PLONG QR Plate
#3676 - 509PLONG QR Plate

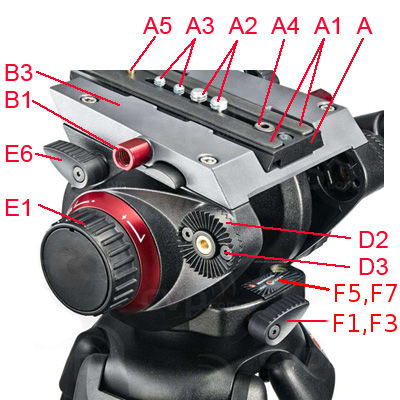

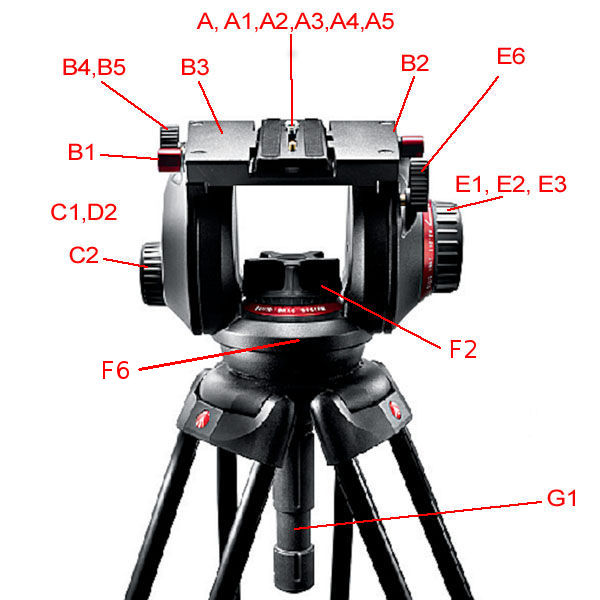

MANFROTTO 509HD SIDE VIEW

Manfrotto 509HD

B1 Accessory Pin
#8107 - B2 QR Safety Lock
#8167 - B3 QR Receiver - Top Plate
#4690 - B4 QR Locking Shoe
#8106 - B5 QR Lock Knob

C1 Side Plate (left side)
#8105 - C2 Tension Knob

#4951 - D1 Pan Handle with Clamp
#8104 - D2 Pan Handle Locking Disk
#5067 - D3 Retaining Screws for Pan Disk

All Parts For Pan Handle Are Listed Here

#8108 - E1 Tilt Tension Locking Knob
E2 Bezel (not a stock item)
E3 Pressure Rocker (not a stock item)
E4 Right Side Plate (not a stock item)
E5 Tension Spring (not a stock item)
#8109 - E6 Tilt Lock Knob
#8174 - E7 Tilt Fluid Disk

#8110 - F1 Pan Lock Knob
F2 Pan Tension Knob (not a stock item)
F3 Main Casting (not a stock item)
#88137 - F4 Pan Fluid Disk

#8103 - G1 Level Handle





Editor note: All parts are interchangeable between versions
Item numbers listed in the index on the right column may not be
shown on the picture because the part may be obscured or is
inside in underneath another part and cannot be shown. Click on
the link to see the actual Part picture. Links will turn red on
"mouse-over' and blue after they have been visited.
