516 Video Head

Made after 2004-11-11

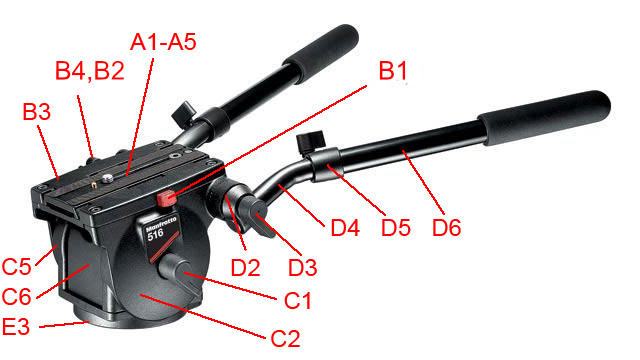

Manfroto 516 head parts

#1289 - A1 357PLV Plate Only
#1395 - A1 357PLONG Plate Only
#1434 - A2 3/8-16 Screw (set of 2)
#1435 - A3 1/4-20 Screw (set of 2)
#3513 - A4 Rubber Stopper
#5175 - A5 Anti-Rotation Pin & Spring

B1 QR Safety Button
B2 QR Locking Shoe
B3 QR Top Plate
#1352 - B4 QR Locking Knob

#2966 - C1 Tilt Locking Knob
#8134 - C2 Left Side Plate Assy
C3 Tension Knob Cover
C4 Tension Knob Assy
#8129 - C5 Right Side Plate Assy
C6 Capstan and Bearing Cover

D1 Pan Handle Assembly
(Call to order - 864-583-6835)
#1280 - D2 Pan Handle Clamp
#3076 - D3 Clamp Tightening Knob
#3635 - D4 Upper Pan Handle
#3763 - D5 Pan Handle Extnsn Lock
#3740 - D6 Lower Pan Handle

#3594 - E1 Bubble Level (not shown)
#4208 - E2 Pan Lock Knob (not shown)
E3 Base Plate (not a stock item)
E4 Pan Locking Assy
