519 Video Head
with Bowl Base

Made after 200XXXX

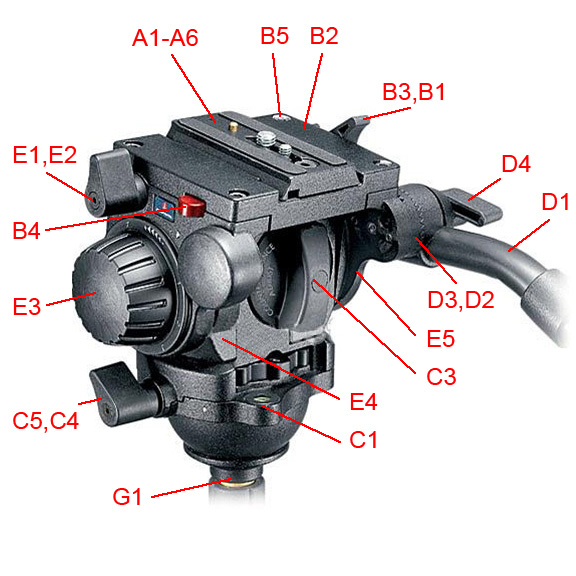

Manfrotto 519 Parts


#1302 - A1 501PL Quick Release Plate
#2619 - A2 501PL Rubber Pads (set of 2)
#1435 - A3 1/4 QR Replacment Screw
#1434 - A4 3/8 QR Replacement Screw
#3513 - A5 Rubber Stopper
#5175 - A6 Anti-Rotation Pin

#8164 - B1 QR Locking Shoe
B2 Top Plate (not a stock item)
#8170 - B3 QR Locking Knob
#8171 - B4 QR Safety Button
B5 Top Plate Retaining Screws

#3594 - C1 Bubble Level
C2 Pan Tension Knob (not a stock item)
#8130 - C3 Pan Locking Shoe
#8172 - C4 PanTension Knob
#8173 - C5 Pan Knob Cover

#327 - D1 Pan Handle
#8104 - D2 Pan Handle Locking Disk
#5067 - D3 Retaining Screws for Pan Disk
#1281 - D4 Clamp Knob

All Pan Handle Parts Are Listed Here

#8173 - E1 Knob Cover
#8165 - E2 Tilt Lock Knob
E3 Tilt Tension Knob (not a stock item)
E4 Tilt Tension Side Plate Assmbly
E5 Pan Side Plate Assmbly

#8103 - G1 Leveler Adjust Knob




Editor note: Parts are interchangeable between versions

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
