526 Video Head
with Bowl Base

Made after 2005-09-26

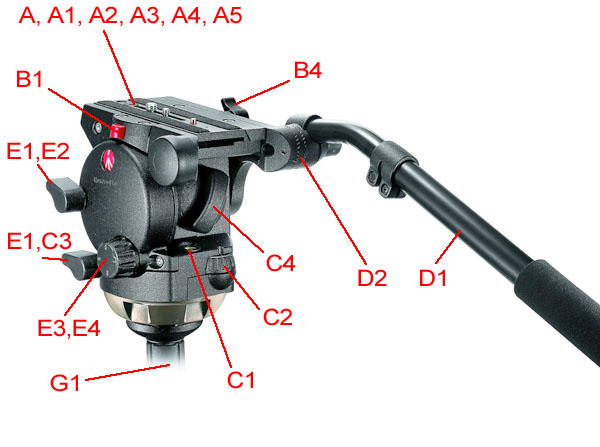

Manfroto 526 head parts

#1289 - A1 357PLV Plate Only
#1395 - A1 357PLONG Plate Only
#1434 - A2 3/8-16 Screw (set of 2)
#1435 - A3 1/4-20 Screw (set of 2)
#3513 - A4 Rubber Stopper
#5175 - A5 Anti-Rotation Pin & Spring

#8115 - B1 QR Locking Shoe
B2 Top Plate (not a stock item)
B3 QR Side Plate
#3151 - B4 QR Locking Shoe

#3594 - C1 Bubble Level
C2 Pan Tension Knob (not a stock item)
#8114 - C3 Pan Locking Knob
requires E1 knob cover
#8112 - C4 Tilt Tension Knob

#327 - D1 Pan Handle
#8104 - D2 Pan Handle Locking Disk
#5067 - D3 Retaining Screws for Pan Disk

#8113 - E1 Knob Cover
#2892 - E2 Tilt Lock Knob
E3 Tilt Tension Knob (not a stock item)
E4 Tilt Tension Knob & Assmbly

#8111 - G1 Leveler Adjust Knob




Editor note: Parts are interchangeable between versions

Item numbers listed in the index on the right column may not
be shown on the picture because the part may be obscured
or is inside in underneath another part and cannot be shown.
Click on the link to see the actual Part picture. Links will turn
red on "mouse-over' and blue after they have been visited.
