557B Monopod Version 1


Made after 2003-05-06

357 adapter

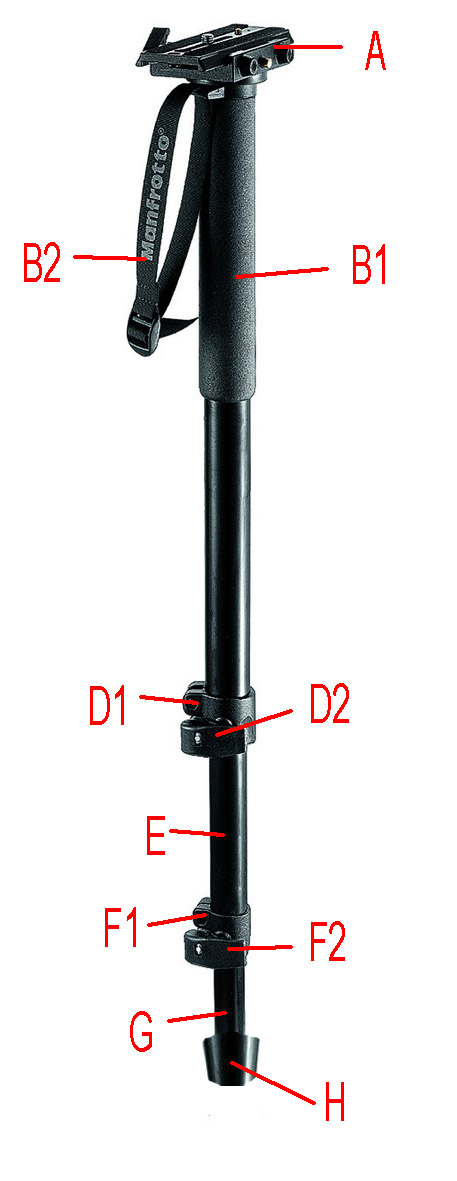

557B MONOPOD

#4207 - A 357 QR Plate Adapter

#1395 - A1 357PLV Plate Only
#1434 - A2 3/8-16 Screw (set of 2)
#1435 - A3 1/4-20 Screw (set of 2)
#3513 - A4 Rubber Stopper
#5175 - A5 Anti-Rotation Pin & Spring
A6 QR Receiver Plate
(not a stock item)
#5177 - A7 Safety Lock Clamp & Knob
#5176 - A8 Saftey Pin and Spring

B1 QR Receiver Plate (not a stock item)
#5176 - B2 Saftey Pin and Spring
#4366 - B3 Lock Knob & Shoe
#1437 - B4 Locking Knob Only

B1 Upper Tube (not a stock item)
#171 - B2 Wrist Strap

C Cable Clip & Wrench (not a stock item)

D1 Original Lower Leg Lock (Discontinued)
#3729 - D2 Original Snap Lever
#4911 - D1 Replacement Upper Leg Lock
#4396 - D2 Replacement Snap Lever


E Middle Leg Tube (not a stock item)

F1 Original Lower Leg Lock (Discontinued)
#3148 - F2 Original Snap Lever
#3824 - F1 Replacement Lower Leg Lock
#4396 - F2 Replacement Snap Lever


G Lower Leg Tube (not a stock item)

#3183 - H Rubber Foot
Editor note:Parts D1 & F1are discontinued and no
longer available. Replacements are shown. Be aware
that the snap levers are different and are NOT
compatible or interchangeable bewteen the locks or
replacements. The Foot changed from Version 1 to Ver 2.
