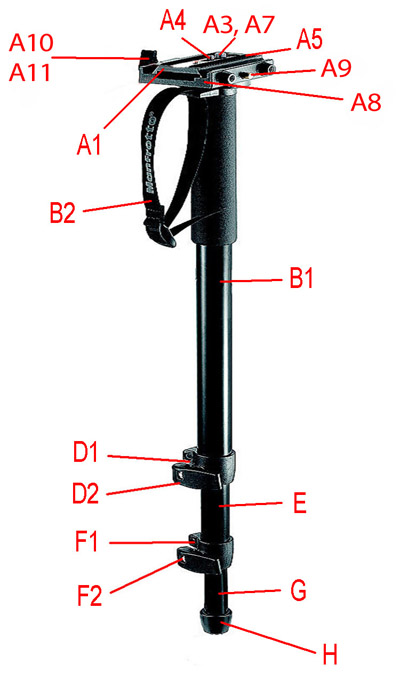

558B - Monopod version 2

Made after 2004-09-02
For Serial Number A0111530

A 577 QR Adapter & Plate Assy

A1 501PL Quick Release Plate
A2 Rubber Stopper (not shown)
A3 3/8-16 Screw (set of 2)
A4 1/4-20 Screw (set of 2)
A5 Rubber Grippers (set of 2)
A6 501 Metal Plate (not in stock)
A7 Anti-Rotation Pin & Spring
A8 577 Base (not a part)
A9 Saftey Pin and Spring
A10 Lock Knob & Shoe
A11 Locking Knob Only



B1 Top Leg Tube (not a stock item)
B2 Wrist Strap

C Cable Clip & Wrench (not shown)

D1 Original Upper Leg Lock (Discontinued)
D2 Original Upper Snap Lock Lever (Discontinued)
D1 Replacement Upper Leg Lock
D2 Replacement Upper Snap Lever

E Middle Leg Tube (not a stock item)

F1 Original Lower Leg Lock (Discontinued)
F2 Original Lower Snap Lock Lever
F1 Replacement Lower Leg Lock Assy
F2 Replacement Lower Snap Lock Lever

G Bottom Leg Tube (not a stock item)

H Rubber Foot


Editor note: The original leg locks D1 & F1 are no
longer available. Substitutions are listed. Please be
aware that the snap levers are NOT compatible. Click
on the link to see the actual Part picture. Links will
turn red on "mouse-over' and blue after they have
been visited.
