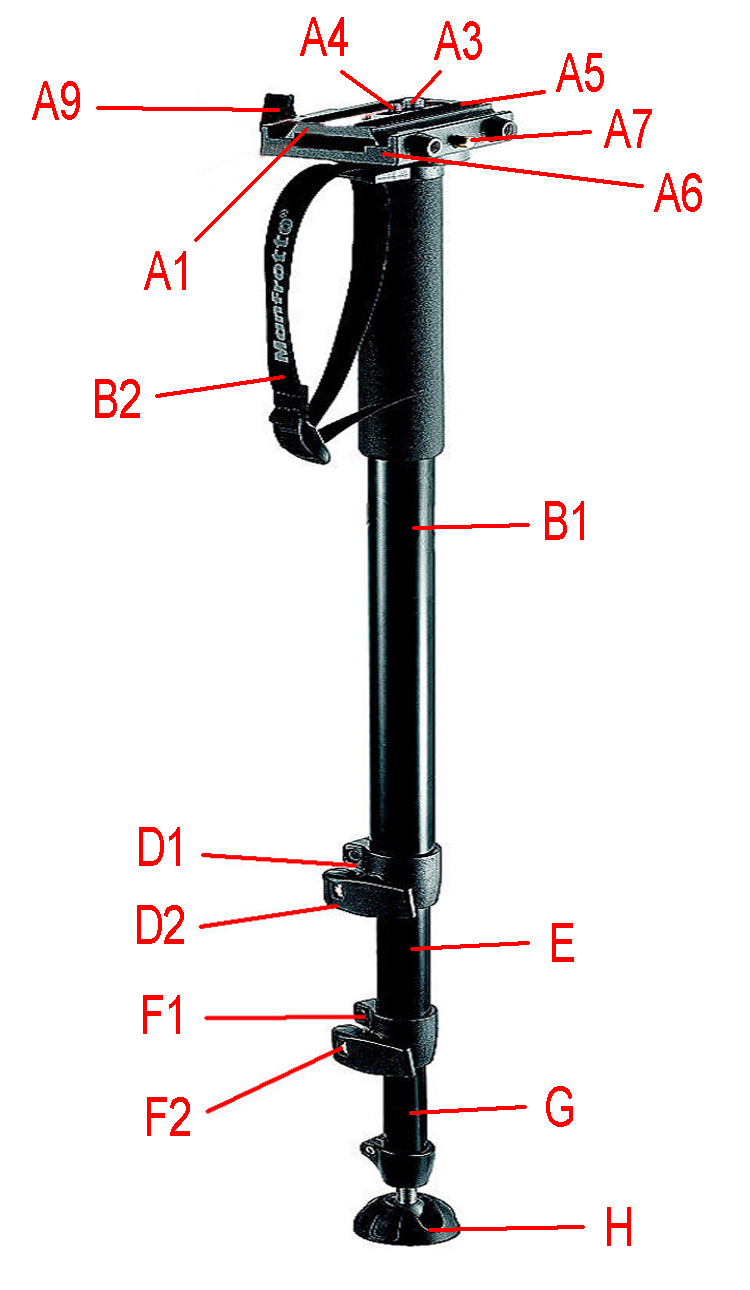

558B - Monopod version 3

Made after 2007-07-16
For Serial Number A1049898

A 577 QR Adapter & Plate Assy

A1 501PL Quick Release Plate
A2 Rubber Stopper (not shown)
A3 3/8-16 Screw (set of 2)
A4 1/4-20 Screw (set of 2)
A5 Rubber Grippers (set of 2)
A6 501 Metal Plate (not in stock)
A7 Anti-Rotation Pin & Spring
A8 577 Base (not a part)
A9 Saftey Pin and Spring
A10 Lock Knob & Shoe
A11 Locking Knob Only


B1 Top Leg Tube (not a stock item)
B2 Wrist Strap

C Cable Clip & Wrench (not shown)

D1 Upper Leg Lock Assy
D2 Upper Snap Lever
E Middle Leg Tube (not a stock item)

F1 Lower Leg Lock Assy
F2 Lower Snap Lock Lever

G Bottom Leg Tube (not a stock item)

H Rubber Foot


Editor note: Click on the link to see the actual
part picture. Links will turn red on "mouse-over'
and blue after they have been visited.
