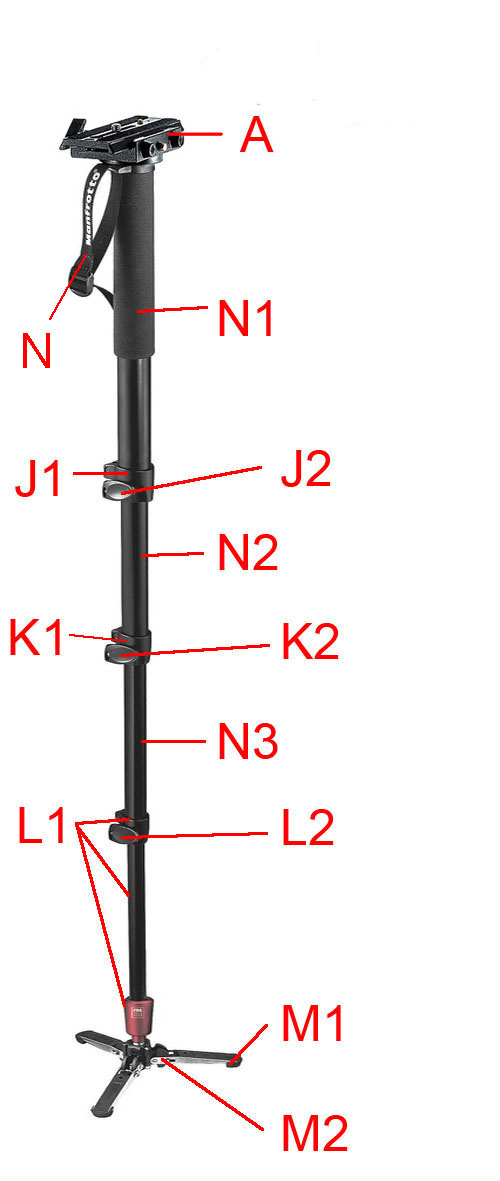

562B-1 VIDEO Monopod


Made after 2007-02-16
For serial number from A0678954

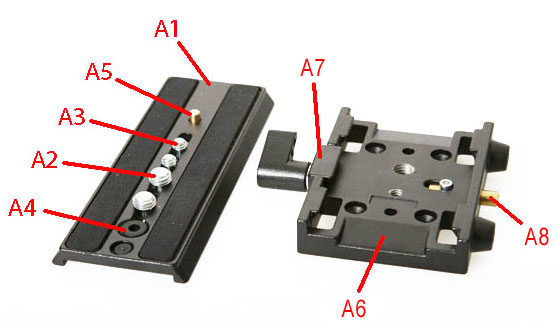

357 adapter
A 357 QR Plate Adapter

A1 357PLV Plate Only
A2 3/8-16 Screw (set of 2)
A3 1/4-20 Screw (set of 2)
A4 Rubber Stopper
A5 Anti-Rotation Spring Pin (not a stock item)
A6 QR Receiver Plate (not a stock item)
A7 Locking Knob & Shoe (not a stock item)
A8 Safety Lock (not a stock item)





J1 Upper Leg Lock
J2 Upper Snap Lever

K1 Middle Leg Lock
K2 Middle Snap Lever

L1 Lower Leg Section Assembly
(Includes: lock, tube, red ball joint)

L2 Lower Snap Lever

M1 Rubber Pads for Foot
M2 Foot Assembly - rubber pads not included

N Wrist Strap
N1 Upper Leg Tube with Grip

N2 Upper Middle Leg Tube
N3 Lower Middle Leg Tube





monopod 562B-1
Editor note: Item numbers listed in the index on the right
column may not be shown on the picture because the part
may be obscured or is inside in underneath another part
and cannot be shown. Click on the link to see the actual
part picture. Links will turn red on "mouse-over' and blue
after they have been visited.
