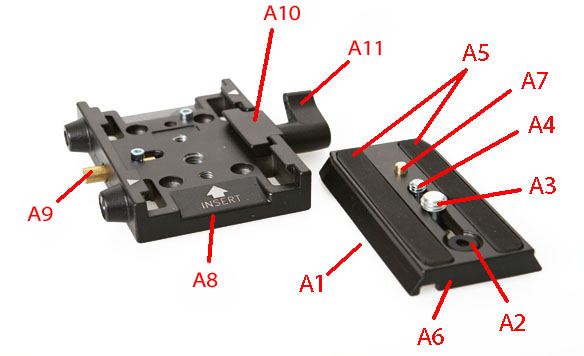

577 Version 1 Quick Release Adapter Set


Made after 2003-05-06

A 577 QR Adapter & Plate Assy

A1 501PL Quick Release Plate
A2 Rubber Stopper
A3 3/8-16 Screw (set of 2)
A4 1/4-20 Screw (set of 2)
A5 Rubber Grippers (set of 2)
A6 Metal Plate (not in stock)
A7 Anti-Rotation Pin & Spring

A8 QR Receiver Plate (not a stock item)
A8 Saftey Pin and Spring
A10 Lock Knob & Shoe
A11 Locking Knob Only

Editor note: Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown. Click on the link to see the actual Part picture. Links will turn red on "mouse-over' and blue after they have been visited.
