754B Version 21 - Aluminum Video Leveler Tripod

Made after 2002-09-17


756B tripod'
A Center Column Assembly (not a stock item)

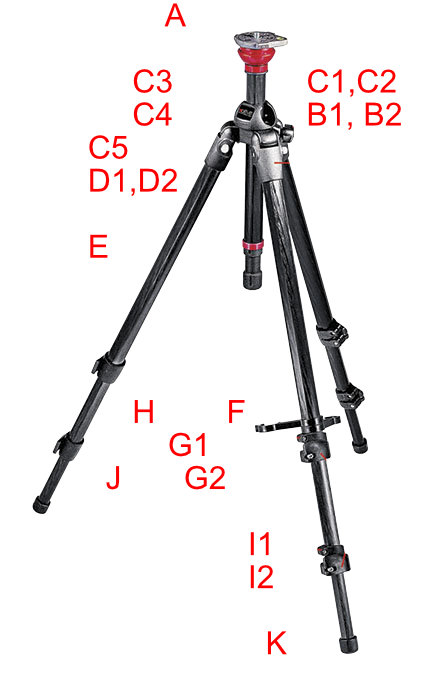

554 Parts Diagram

B1 Center Column Lock Knob
B1 USED Center Column Lock Knob
B2 USED Center Sliding Block

C1 Center Column Capstan Left (protrudes on the bottom)
C2 Friction Bearing
C3 Center Column Capstan Right(recessed on the bottom)
C4 Main Casting Top Plate
C5 Main Casting Bottom Plate

D1 Leg Brace
D2 USED Leg Extender Release Button

E USED Upper Leg Tube

F Leg Clips

G1 USED Upper Leg Clamp Assy
G2 Upper Snap Lever

H Middle Leg Tube
H USED Middle Leg Tube

I1 USED Lower Leg Clamp Assy
I2 Lower Snap Lock Lever

J USED Lower Leg Tube

K USED Rubber Foot with Lower Leg Tube Assembly

Editor note: Click on the numbered link to see the actual part picture.
