755B Version 2 - Aluminum Tripod

Made after 2004-02-05
For Serial NUmber from A0001259

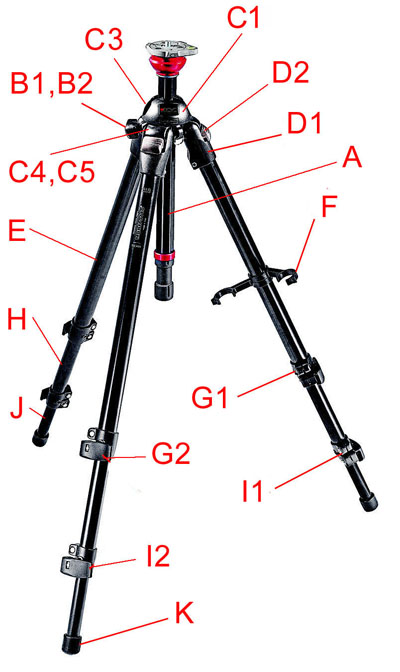

755B version 2 tripod' A Center Column Assembly
Click Here for Center Column Parts

B1 Center Column Lock Knob
B1 USED Center Column Lock Knob
B2 USED Center Sliding Block

C1 USED Center Column Capstan Left (has label & protrudes on the bottom)
C2 Friction Bearing
C3 USED Center Column Capstan Right (recessed on the bottom)
C4 USED Main Casting Top Plate
C5 Main Casting Bottom Plate

D1 Leg Brace
D1 USED Leg Brace
D2 USED Leg Extender Release Button

E USED Upper Leg LockTube

F Leg Clips

G1 USED Upper Leg Lock Assy
G2 Upper Snap Lever

H Middle Leg Tube
H USED Middle Leg Tube

I1 USED Lower Leg Lock Assy
I2 Lower Snap Lock Lever

J USED Lower Leg Tube

K Rubber Feet (set of 3)
K USED Rubber Foot with Lower Leg Tube Assembly

Editor note: Parts are interchangeable between versions 2 & 3 EXCEPT:
Leg locks and snap levers. You can completely replace the leg lock assembly on version 3 with the version 2 leg locks. The snap lock levers are NOT interchangeable.

Part B1 The center column knob is different from version 2 to 3 and NOT interchangeable.

Parts marked as USED are reconditioned and only available as USED. Where there is a dual listing the one not showning USED is the NEW part. Item L for example.

Item numbers listed in the index on the right column may not be shown
on the picture because the part may be obscured or is inside another part or
it is underneath another part and cannot be shown. Click on the link to see
the actual Part picture. Links will turn red on "mouse-over' and blue after they
have been visited.
