755XB Aluminum Video Tripod

Made after 2008-10-15
For serial number from A1612001

A1 Center Column Lock Knob
A2 Center Column Brake Shoe

B1 Main Casting Top Plate
B2 Main Casting Bottom Plate

C No Parts Listed

D Center Column Assy
D1 Center Column Top Plate
D2 Center Column Shaft
D3 Center Column Bowl
D4 Center Column Grip
D5 Center Column Lock Handle

E1 Leg Brace & Rubber Leg Tube
E1 Leg Brace & Plain Leg Tube
E2 Leg Extender Release Button
E3 Leg Clips (set of 2)

F1 Upper Leg Lock Assy
F2 Upper Snap Lever

G Middle Leg Tube

H1 Lower Leg Lock Assy
H2 Lower Snap Lock Lever

I Lower Leg Tube

J1 Rubber Foot (set of 3)
J2 Spike foot set of 3 - 20mm dia

K Cable Clip & Wrench

L Strap Loop

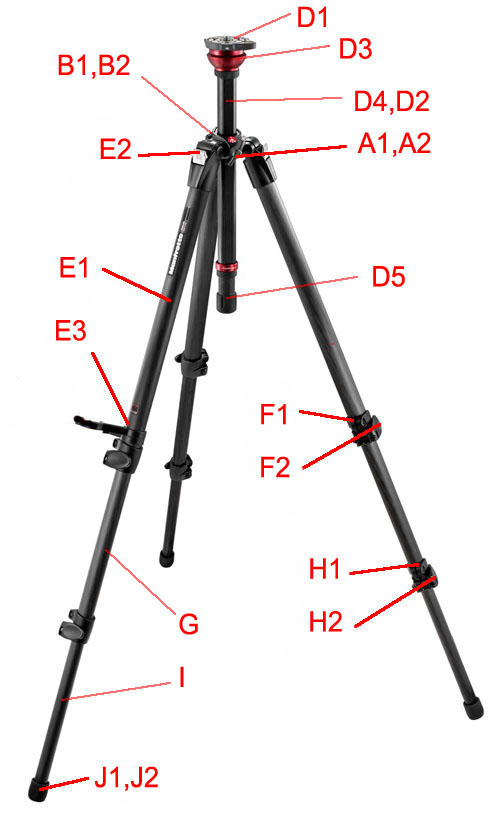

These pictures are for illustration only
Editor note: Item numbers listed in the index on the right column
may not be shown on the picture because the part may be
obscured or is inside in underneath another part and cannot be
shown. Click on the link to see the actual Part picture. Links will turn
red on "mouse-over' and blue after they have been visited.
