808RC4 VERSION 1 - 3 Way Pan Head

Made after 2006-06-21
For Serial Number C0272661

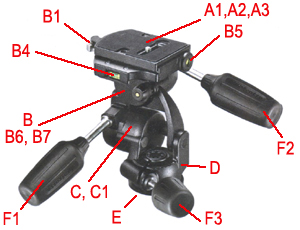

808RC4 HEAD #1361 - A Quick Release Assy with Screws
#1435 - A1 1/4 Thumbscrew
#1434 - A2 3/8 Thumbscrew

#3376 - B QR Receiver Assembly
#1205 - B1 QR Release Lever
#1193 - B2 QR Safety Pin
#1191 - B3 QR Pivot Screw
#5211 - B4 QR Long Bubble Level
#3594 - B5 QR Round Bubble Level
#5165 - B6 ASM Plug
#3594 - B7 QR Bearing & Spring

#4441 - C Tilt Pivot Assembly
#5165 - C1 Tilt Pivot Plug
C2 Tilt Bearing (not a stock item)
C3 Tilt Screw(not a stock item)
C4 Tilt Pivot Label(not a stock item)

#4575 - D Pan Pivot
D1 Pan Pivot Screw(not a stock item)
#4594 - D2 Pan Pivot Bearing & Spring

#4579 - E Base Assembly

#4880 - F Set of 3 Handles
#4879 - F1 Top Handle
#4879 - F2 Middle Handle
#2659 - F3 Bottom Handle








#4435 - G QR Cam Safety Release

#4913 - H1 Top QR Receiver
#4914 - H2 Top Pivot Screw
H3 Side Name Plate (not a stock item)
H4 Other Side Name Plate (not a stock item)

#4916 - I1 Middle Joint Cover
#4915 - I2 Middle Pivot Screw
I3 Middle Name Plate (not a stock item)

#4917 - J Bottom Joint Cover
#4918 - J1Bottom Return Spring
#4915 - J2 Bottom Pivot Joint
J3 Bottom Name Plate (not a stock item)

#4919 - K Base Assmebly (K1, K2)
K1 Base Plate(not a stock item)
K2 Base Pivot(not a stock item)
K3 Base Name Plate(not a stock item)

#4880 - L Handle Set (D, E, F)
